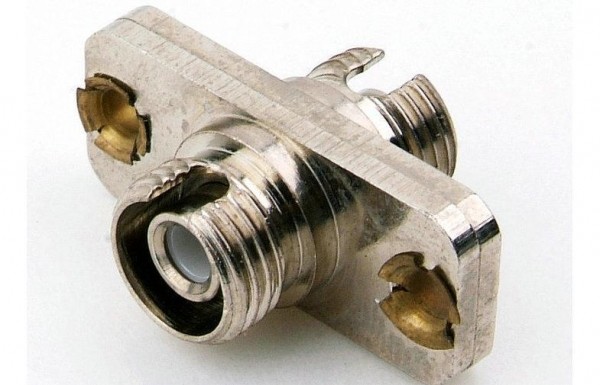

Fiber optic FC/APC/UPC/PC single mode ,multimode adapter with metal rectangle flange
Fiber optic FC/APC/UPC/PC single mode ,multimode adapter with metal rectangle flange
Specifications
Brand Name :
ZGT
Model Number :
ZZTAD-FC5-S-M
Certification :
ISO9001,RoHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
900K PER MONTH
Delivery Time :
3-5days
Packaging Details :
Plastic bag
Product name :
fiber optic adapter
Color :
Blue /Beige /Green
Type :
Single mode/ Multi-mode
Insertion loss :
≤ 0.2dB(SM&MM)
Application :
FTTH FTTB FTTX Network
Material :
zinc alloy
Return loss :
>55dB
Operating temperature :
-40 to +85 degree
Durability :
>1000time
Wavelength :
1310nm/1550nm/850nm/1300nm
Storage temperature :
Storage Temperature
Sleeve material :
Ceramic
Housing material :
metal or plastic housing
Operating temp :
-40 to +85 degree
Warranty :
8 years
Description

FC AdapterYou are here: Home > Products > Fiber Optic Adapter

FC adapter with metal rectangle flange

Serial Number: ZZTAD-FC5-S-M

Prev: MU SX adapter
Next: FC to ST hybrid adapter DX plastic housing
Back
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.

Parts &Material

PartsMaterialRemarks
SleeveCeramic/ NIckel
HousingZinc alloy/Copper
Dust capPEFlammability UL94 V-0

Optical Performance

Premium GradeStandard Grade
Insertion Loss≤0.1dB≤0.2dB
Durability1000 times1000 times

Enviroment and Mechanical

PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC ≤0.2dB
Storage Temperature-40ºC to +85ºC ≤0.2dB
