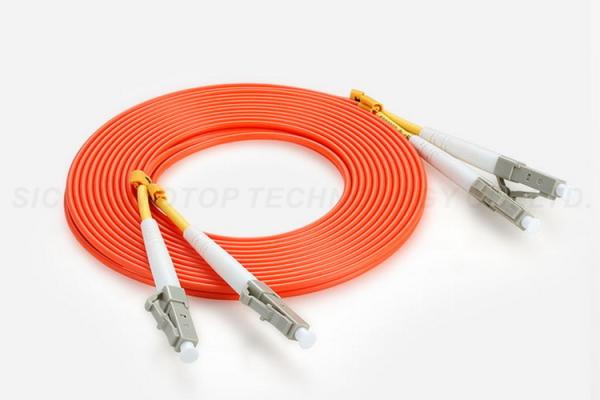

Duplex LC Fiber Optic Patch Cord Multimode Mode Orange Color OM1 OM2
Duplex LC Fiber Optic Patch Cord Multimode Mode Orange Color OM1 OM2
Duplex LC Fiber Optic Patch Cord Multimode Mode Orange Color OM1 OM2
Duplex LC Fiber Optic Patch Cord Multimode Mode Orange Color OM1 OM2
Specifications
Brand Name :
OTOP
Model Number :
LC - LC
Certification :
Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Supply Ability :
200000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Payment Terms :
D/A, T/T, L/C, D/A, D/P
Name :
Fiber Optic Patch cord
Color :
Orange
Mode :
Multimode
Insertion loss :
≤0.3dB
Product name :
MM Duplex Fiber Patch Cord
Quality control :
100% test before shipping
Description

Duplex LC Fiber Optic Patch Cord Multimode Orange Color OM1 OM2



♦ Feature


- Price-Competitive
- Low Insertion Loss & PDL
- Factory-terminated and Tested

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
Realize the activelink of optic fiber transmission

Professional manufacturer, 100% tested
Save much costs, bring more benefit for customer to expand business.

Threaded style coupling
Provides bend protection for installation and long term use


♦ Application

Outdoor Areas
Harsh Environment

- FTTH
- Fiber optic data transmission
- Optical fiber communications system
- Optical fiber access networks(LAN)
- Optical fiber CATV
- Optical fiber test equipment
- Optical fiber data communication
- Optical fiber sensor


♦ Specification

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.25dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥50dB(PC/UPC)
≥60dB(APC)		 ≥40dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.



♦ Packing
- Plastic bag 0.06mm thickness

Duplex LC Fiber Optic Patch Cord Multimode Mode Orange Color OM1 OM2
