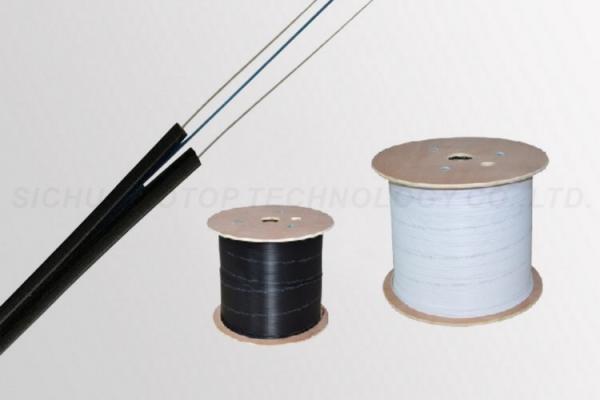

Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification
Specifications
Brand Name :
OTOP / OEM Accepted
Model Number :
Multi Cores
Certification :
RoHS, UL, CE, ISO9001, VDE, CCC
Place of Origin :
China
MOQ :
1 KM
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000000 km per month
Delivery Time :
10 working days
Packaging Details :
Standard
Type :
Single-Mode
Fiber type :
Multi-cores
Color :
Black or Customized
Transportation packiage :
Wooden Drum
Material :
Available upon customer's request
Use :
Optical Jumper or FTTH
Description

Black Fiber Optic Cable / FTTH Drop Cable UL ISO9001 Certification

♦ Cable Chracteristics

1. Good mechanical and temperature performance

2. Metallic armor to protect cable from rodent attack and mechanical damage.

3. Embedded steel wire provide desirable tensile strength and crush resistance.

4. Compact, easy to install.

5. UV and waterproof design.

6. Hight strength Kevlar yarn member
7. More tight buffered design
8. Round construction
9. Easy to strip

♦ Indoor fiber cable

- Indoor distribution
- Pigtail of communication equipment
- Communication equipment
- Floor connection

♦ Specifications


Cable Count
Out sheath
Diameter
Fiber
Diameter
Weight
Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature

(MM)
(UM)
(KG)
short term
long term
short term
long term
short term
long term
(ºC)

2
2.0
250
4.25
300
150
300
150
20D
10D
-40+60

4
2.0
250
4.25
300
150
300
150
20D
10D
-40+60

6
3.0
250
7.5
300
150
300
150
20D
10D
-40+60

8
3.0
250
7.5
300
150
300
150
20D
10D
-40+60

12
3.0
250
7.5
300
150
300
150
20D
10D
-40+60

24
3.0
250
8
300
150
300
150
20D
10D
-40+60

♦ Packing

- Standard packing

♦ Quality assurance


Main Applications: Suitable for reinforcement of optical fibre cable
In accordance with the contract, we will supply the other sizes and standard steel wire to you.Don't hesitate to contact me if any needed.Our products are of high quality and you will enjoy the best service!
