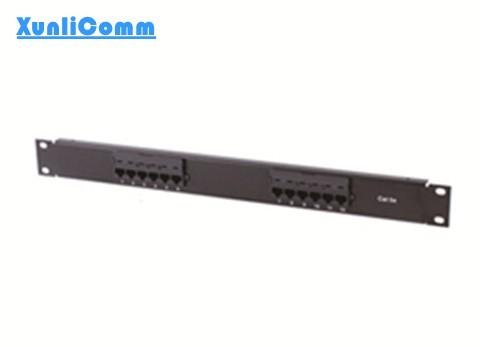

Amp Style Network Patch Panel Sliding Out Fiber Management Easy Access
Amp Style Network Patch Panel Sliding Out Fiber Management Easy Access
Specifications
Brand Name :
XunliComm
Model Number :
XLC-PP-01
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Supply Ability :
1000 Pieces per Day
Delivery Time :
3-15 Days
Packaging Details :
By standard export package.
Name :
UTP 12 Port Patch Panel
Size :
19 Inch 1U
Color :
Black
IDC :
Krone/110/Dual IDC
Material :
ABS&Cold Rolling Steel&Phosphor Bronze
Applicable Cable type :
22AWG~28AWG
Mating Cycles :
800 times
Application :
Wire Accessaries
Description

amp style utp cat5e 12 port 19inch 1u rj45 network patch panel

Product Description

1. Category 5e / categaory 6 Patch Panel,24ports

2. 19 inch,1U

3. IDC option: Krone IDC,110IDC,Dual IDC

4. IDC contract material : phosphor bronze with tin plating over nickel

5. Thickness of gold plating:3u”,6 u”, 15u”,30 u”, 50 u”

6. With port no.printing,not easily moved.With wiring sticker for operation guide,with label on top of the RJ45 port for users note.

7. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2,UL listed,CE certified.

Features

High density, this design allows up to 48 fibers using LC duplex adapter

User-friendly fiber management system

Sliding out fiber management, easy access

Can be pre-loaded with fiber optic adapters, pigtails, splice trays

Simple, quick installation, reliable fiber termination

Supports minimum bend radius requirements to ensure low loss transmission

UTP Cat5e/6/6a 24 ports patch panel with quick tool design allows installer to install in the most efficient way
It is compatible with full series keystone Jack, included normal type and quick tool type
Combined with UTP LAN cable, Patch cords, and Keystone jack, it provide excellent compatible performance and extra DB value for full series cabling system

Applications:

Network communication,LAN cabling network,Computer center

IDC Silver plated in the surface of the contact conductor
Insulation resistance 1000 Mohms minimum
Copper conductor 0.4-0.7mm( 22-26 AWG Solid wire)
Contact resistance 7 mohms maximum
Dielectric intensity AC 1000 Vrms 50Hz or 60Hz in 60s
Storage Temperature -40 to 70° C
Operating Temperature -10 to 60° C
Relative Humidity 95%, noncondtion
Design to mount Any standard 19" rack or cabinet (and 10inch type)
Space saving high-density 1U (24 port ,48port ,25port,50port available).
