Specifications
Payment Terms :
T/T, Western Union,PayPal
Fiber Mode :
125 +/-2
Packaging Details :
Box
Reflection Loss :
typically > 50dB
Delivery Time :
3-5working days
Number of Insertions :
> 10,000
Product name :
80μm‌ Bare Fiber Alignment Device
Insertion Loss :
typically < 0.3dB
Operating Temperature Range :
-10°C to 50°C
MOQ :
1unit
Price :
Negotiation
Place of Origin :
China
Model Number :
80μm‌
Alignment Time :
approx. 1 sec
Description

80μm‌ Bare Fiber Alignment Device 80μm‌ Multipurpose Pigtail

Product descriptions:

80um Fiber Pigtail is a good tool for the measurement of the characteristic of fibers.
It is applicable to SM or MM fiber and can be connected easily and quickly under any circumstances. Most importantly, its insertion loss is below 0.3dB.
Under the premise of Time is Money, the outstanding features of HU125 can provide a rapid and accurate measurement and research on fibers various optical properties. For example,
the connection of O.T.D.R., Optical Spectrum Analyzers, Light Source, Power Meter and Fiber phone (for communication during the execution of fiber cable engineering), etc.
Application: R&D, Factory, Outdoor engineering, repair and maintenance.

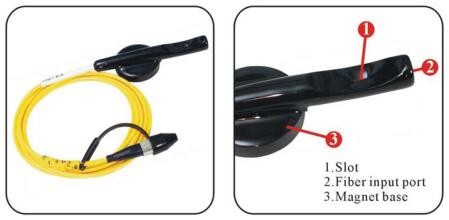

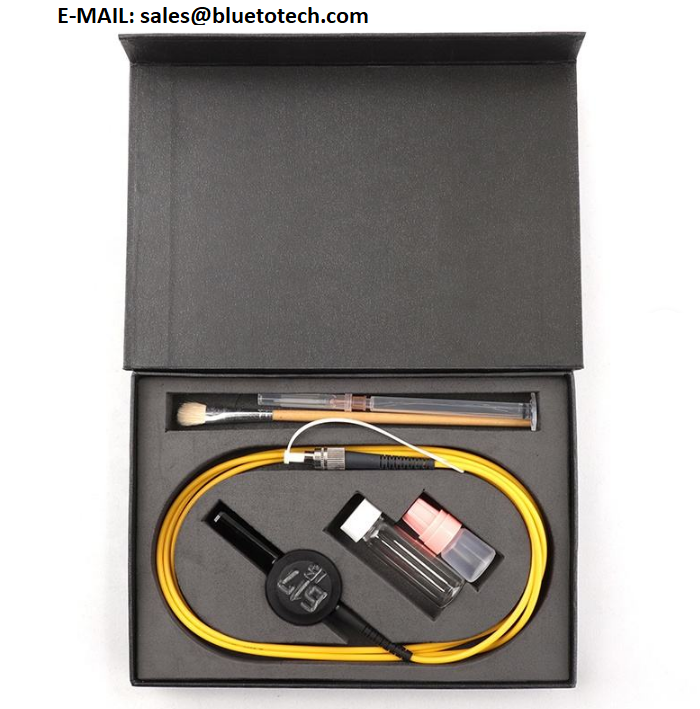

Product pictures:

80μm‌ Bare Fiber Alignment Device 80μm‌ Multipurpose Pigtail 80μm‌ Bare Fiber Connector 1 Second Connecting

80μm‌ Bare Fiber Alignment Device 80μm‌ Multipurpose Pigtail 80μm‌ Bare Fiber Connector 1 Second Connecting
80μm‌ Bare Fiber Alignment Device 80μm‌ Multipurpose Pigtail 80μm‌ Bare Fiber Connector 1 Second Connecting
1. Model: 80um-SM (single-mode optical fiber 9/125 um)
HU125-MM (multi-mode optical fiber 50/125 um or 62.5/125 um)
2. Pigtail length: 150?5cm
3. Insertion Loss: < 0.3 dB
4. Number of insertions: 10,000 min.
5. Reflection Loss: < - 50 dB typ.
6. Alignment Time: < 1 second
7. Matching Oil: Index of refraction(ND) ?1.4500 +/- 0.01
(Alcohol or pure water or distilled water containing at least 30% alcohol can also be used.)
8. Connector types: FC,SC,ST,D4,E2000,LC,DIN
9. Operating Temperature: 14° to 122° F (-10° to +50° C)
10. Storage Temperature: -40° to 140° F (-40° to +60° C)

For more information, please kindly send us by our mail: sales@bluetotech.com
