Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors
Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors
Specifications
MOQ :
1000
Brand Name :
Blueto
Model Number :
Single Optical Fiber
Certification :
ROHS
Place of Origin :
China
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
In stock
Delivery Time :
2-3 working days
Packaging Details :
PE bag
Color :
White,red,blue,yellow
Material :
PE
Description

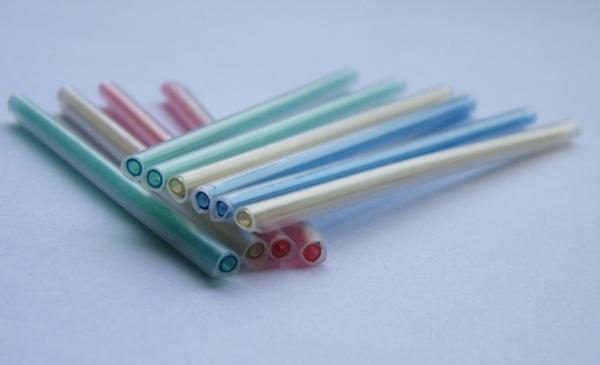

Single Optical Fiber Fusion Splice Protectors

Applications:
Consist of a rod of stainless steel, hot fusion tubing and cross-linked polyolefin. To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties.
Characteristics:
Moisture resistant and environmental protection
Clear sleeve make it easy to detect splice before shrinkage
Easily to use and avoid any damages to the optical fiber during installation
Color optical fiber splice protector is very convenience for installation
Operating temperature range
Operating temperature range:
Operating temperature:-45℃~100℃/-45℃~135℃
Minimum shrink temperature: 80℃
Minimum fully recovery temperature:120℃

Fusion tube(D) Steel rod(D)

Part
Number

Item
Number

O.D. after
Recovery(mm)

Length
(mm)

I.D.
(mm)

Length
(mm)

O.D.
(mm)

Length
(mm)

Package
(pcs/bag)
Larger Sleeves
FOSP-61 30151561 3.0±0.1 60 1.5 61 1.5 56 100
FOSP-60 30151560 3.0±0.1 60 1.5 60 1.5 55 100
FOSP-60B 28151360 2.8±0.1 60 1.3 60 1.5 56 100
FOSP -45 30151545 3.0±0.1 45 1.5 45 1.5 41 100
FOSP -40 30151540 3.0±0.1 40 1.5 40 1.5 36 100
FOSP -23 30151523 3.0±0.1 23 1.5 23 1.5 18 100
Standard Sleeves
FOSP -61M 26121260 2.6±0.1 60 1.3 60 1.2 56 100
FOSP -45M 26121245 2.6±0.1 45 1.3 45 1.2 41 100
FOSP -40M 26121240 2.6±0.1 40 1.3 40 1.2 36 100
FOSP -30M 26121230 2.6±0.1 30 1.3 30 1.2 26 100
FOSP -25M 26121225 2.6±0.1 25 1.3 23 1.2 21 100
Mini Sleeves
FOSP-40T-S 15070540 1.5±0.1 40 0.5 40 0.7 39.5 100
FOSP -40TS 19071040 1.9±0.1 40 1.2 40 0.7 39.5 100
FOSP -60T 20100560 2.0±0.1 60 0.5 60 1.0 56 100
FOSP -40T 20100540 2.0±0.1 40 0.5 40 1.0 36 100
FOSP -60A 24101460 2.4±0.1 60 1.4 60 1.0 56 100
FOSP -40A 24101440 2.4±0.1 40 1.4 40 1.0 36 100
FOSP -45A 24101445 2.4±0.1 45 1.4 45 1.0 41 100
Micro Sleeve
FOSP -40S 14050540 1.4±0.1 40 0.5 40 0.5 39.5 100
FOSP -25S 14050525 1.4±0.1 25 0.5 25 0.5 24.5 100
FOSP -25SS 14050425 1.4±0.1 25 0.4 25 0.5 24.5 100
FOSP -18S 14050518 1.4±0.1 18 0.5 18 0.5 17 100
FOSP -15S 14050515 1.4±0.1 15 0.5 15 0.5 15 100
FOSP -10S 14050510 1.4±0.1 10 0.5 10 0.5 10 100








































Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors
Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors

Fiber Optic Splice Protection sleeve , Single Optical Fiber Fusion Splice Protectors
