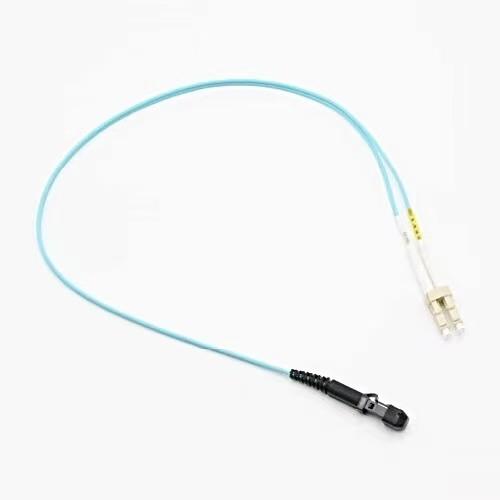

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
Specifications
Brand Name :
OMC or OEM
Model Number :
LC-MTRJ OM3 Zipcord Duplex patch cord
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Products :
LC-MTRJ OM3 Zipcord Duplex patch cord
Return loss :
≤0.3dB Mean (Standard)
Insertion loss :
≤0.3dB Mean (Standard)
Fiber Grade :
G651
Operating temperature :
-40~75°C
Polarity :
A(Tx) to B(Rx)
Description

Description

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

Products Materials-Cable

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

Fiber : BIF Fiber OM3, 50/125

Cable OD: 2.0x4.1mm OD

Cable Jacket : LSZH in Aqua color

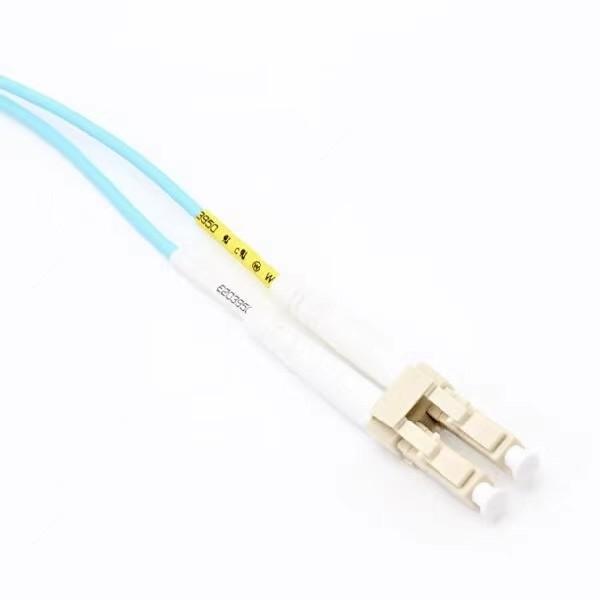

Connector Type-LC

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

High quality MM Ceramic

ferrule, Good concentricity<4.0um

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

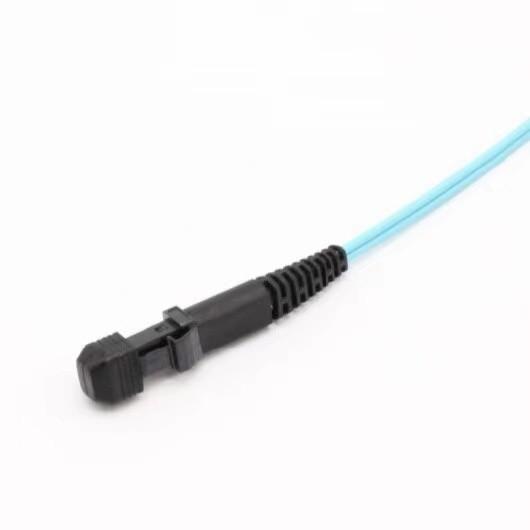

MT-RJ

2.0mm

Standard boot

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

Feature:

High precious connector guarantee Good Repeatability and Interchangeability

OEM Housing kits Color, OEM boot Colors

Customized Design for special demand

MM : Beige housing

OM3,:Aqua housing is available too

Optical Specifications-Patch cable

Insertion loss ≤0.3dB Mean (Standard) Interchangeability ≤0.2dB
Return loss MM UPC≥35dB Vibration ≤0.2dB
Operating temperature -40~75°C Maximum pulling force

70N(2.0mm cable)

100N(3.0mm cable)
Polarity A(Tx) to B(Rx) Fiber Grade G651

Polishing Method

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
