Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
Specifications
Brand Name :
OMC or OEM
Model Number :
armored outdoor cable SM G652D GYXTW
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Type :
SM G652D GYXTW
Fiber number :
2~12
Cable Diameter :
8.0mm
cable weight kg/km :
75
Maximum Tension（N） :
600/1500
Maximum Crush Resistance（N/per100cm） :
1000/3000
Description

Product distribution:

Unitube Light-armored Cable

Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter

Description:

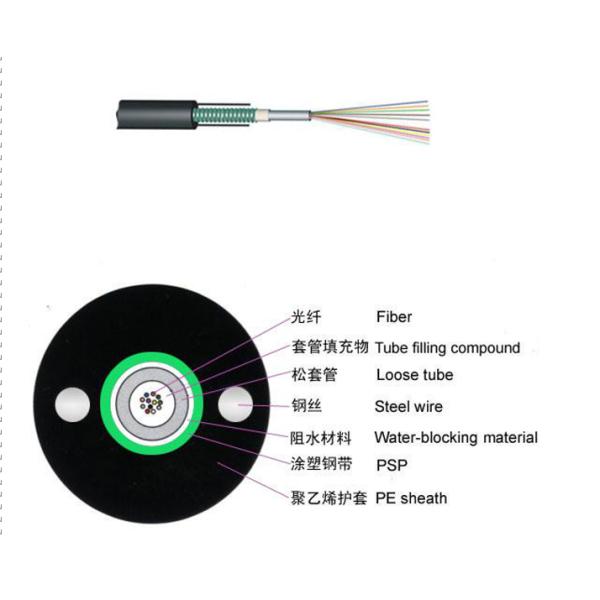

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

  • Good mechanical and temperature performance

  • High strength loose tube that is hydrolysis resistant

  • Special tube filling compound ensure a critical protection of fiber

  • Crush resistance and flexibility

  • PSP enhancing moisture-proof

  • Two parallel steel wires ensure tensile strength

  • Small diameter, light weight and friendly installation

  • Long delivery length

Standards:

GYXTW cable complies with Standard YD/T 769-2003.

Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 B/km
@1550nm ≤0.22 dB/km ≤

Bandwidth

(Class A)

 @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters

Optical cable model Fiber number Cable Diameter cable weight kg/km Maximum Tension(N) Maximum Crush Resistance(N/per100cm) Minimum Bending Radius
GYXTW-2~12 2~12 8.0 mm 75 600/1500 1000/3000 10D/20D

Storage/Operating Temperature : -40℃ to + 70℃

Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter

Unitube Light Outdoor Armoured Cable SM G652D GYXTW 8.0mm Diameter
