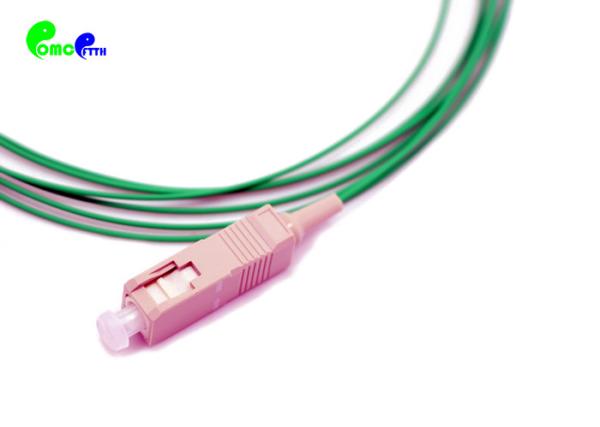

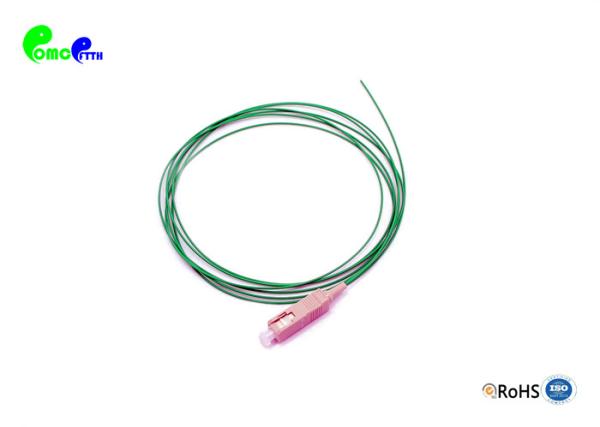

Green Fiber Optic Pigtail OM2 SC PC 50 / 125μm Simplex Tight buffer 900um Cable LSZH

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Connector’s Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

Products info

Features:

• Low insertion loss, Low back reflection loss
• Flexible and easy to strip fiber buffering
• Identifiable fiber buffer colors under all lighting conditions
• Reduces installation time
• Avoids incorrect patching by possible fiber flipping
• Clean and Scratch-Free End Face
• Proportional geometric test is applied to the normal production.
• 100% interferometer check is available under special requirement.

Geometric Specification (only for 3D interferometer tested)

OEM services:

OMC provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

Length tolerance

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.

How to Choose The Right Fiber Optic Cable Type?

PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

How to correctly choose between PVC, LSZH and OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

---
