Moisture - Proof Outdoor Fiber Cable Good Mechanical And Temperature Performance
Moisture - Proof Outdoor Fiber Cable Good Mechanical And Temperature Performance
Specifications
Brand Name :
OMC or OEM
Model Number :
Standard Loose Tube Armored CableⅠ GYTY53
Place of Origin :
China
MOQ :
500M
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, Credit Card
Supply Ability :
1000000KM per month
Delivery Time :
Within a week
Packaging Details :
1KM in a wooden drum
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OEM or OMC
Model Number: :
Standard Loose Tube Armored CableⅠ GYTY53
Fiber Count: :
2-144F
Flammability Rating: :
LSZH
Coating Color: :
Black
Tensile Strength (long/short term): :
400/1320N
Crush Load (long/short term): :
200/1000 (N/100mm)
200/1000 (N/100mm): :
10D/20D (mm)
Operating Temperature: :
-20 to +60°C
Certification :
ROHS and ISO
Description

Standard Loose Tube Armored CableⅠ GYTY53 Outdoor Fiber Cable

Product details

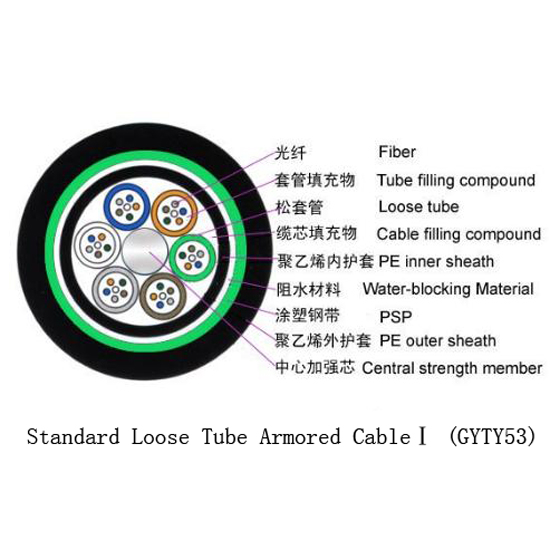

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof

Water-blocking material

Standards: IEC 60794-1.

Technical Parameters.

Part No. Fibers Tubes

Cable OD

(mm)

Weight

Kg/km

Tensile strength

Long term/short term

(N/1m)

Crush resistance

Long term/short term

(N/1m)

Bending Radius

Static/Dynamic

(mm)
GYTY53-2~6X 2~6 1 13 169 1000/3000 1000/3000 10D/20D
GYTY53-8~12X 8~12 2 13 169 1000/3000 1000/3000 10D/20D
GYTY53-14~18X 14~18 3 13 169 1000/3000 1000/3000 10D/20D
GYTY53-20~24X 20~24 4 13 169 1000/3000 1000/3000 10D/20D
GYTY53-26~30X 26~30 5 13 169 1000/3000 1000/3000 10D/20D
GYTY53-32~36X 32~36 6 13 169 1000/3000 1000/3000 10D/20D
GYTY53-38~48X 38~48 4 14.4 200 1000/3000 1000/3000 10D/20D
GYTY53-50~60X 50~60 5 14.4 200 1000/3000 1000/3000 10D/20D
GYTY53-62~72X 62~72 6 15 215 1000/3000 1000/3000 10D/20D
GYTY53-74~84X 74~84 7 16.6 253 1000/3000 1000/3000 10D/20D
GYTY53-86~96X 86~96 8 16.6 253 1000/3000 1000/3000 10D/20D
GYTY53-98~108X

98~10

8

 9 18.0 290 1000/3000 1000/3000 10D/20D
GYTY53-110~120X 110~120 10 18.0 290 1000/3000 1000/3000 10D/20D
GYTY53-122~132X 122~132 11 19.7 343 1000/3000 1000/3000 10D/20D
GYTY53-134~144X 134~144 12 19.7 343 1000/3000 1000/3000 10D/20D

Note:

Suffix X denotes fiber type.

The nominal value of the PE outer sheath thickness is 1.8mm. The nominal value of the PE inner sheath thickness is 0.8mm.

Moisture - Proof Outdoor Fiber Cable Good Mechanical And Temperature Performance

​

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.

Moisture - Proof Outdoor Fiber Cable Good Mechanical And Temperature Performance
