6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
Specifications
Brand Name :
JQ/OEM
Model Number :
GYXTS-24B1
Certification :
ISO9001
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
YOFC,Fiberhome,as request
Color :
Black
Jacket :
PE,MDPE
Strength member :
Steel wire
Fiber count :
2-24 cores
Installation :
Aerial & Duct
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Armored :
Steel tape
Product name :
Outdoor Optic Fiber Cable
Application :
Network
Description

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)

Product Description

Uni-tube Anti-rodent Optical Cable(GYXTS)

Single-mode/multi mode fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The loose tube is armored with steel wires and corrugated steel tape. Then a PE outer sheath is extruded.
Fiber Count
2-12
14-24
Tube Diameter
2.2mm
2.6mm
Steel wire diameter (mm) number
0.7mm/12pcs
0.7mm/12pcs
Max core in tube
12
24
Armored Material
Steel Wire
Steel tape
Cable Diameter
8mm
8.5
Cable Weight
104
136
Installation
Aerial
Underground duct
Tensile strength (N)
Long time: 600N
Short time:1500N
Operating Tempersture (°C)
-40~~+60
Packing detail
wooden drum
Model Number
Fiber optic cable GYXTS

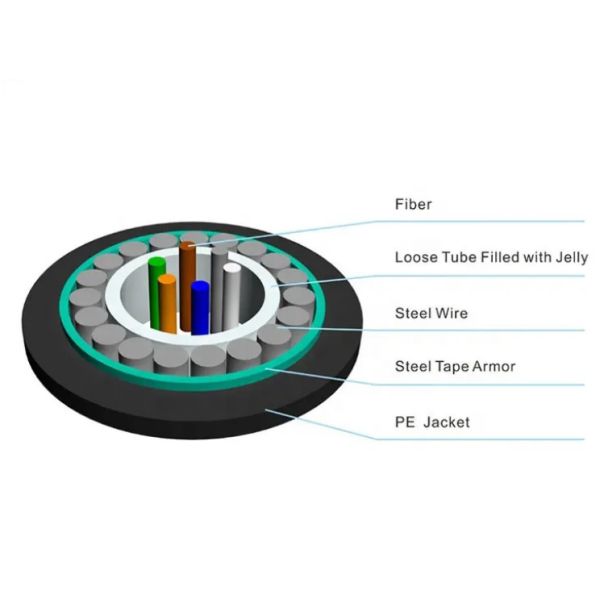

Product Structure

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)

Application

Duct and aerial

Delivery&Payment

6 8 12 24 Core Fiber Optic Cable Anti-rodent Optical Cable (GYXTS)
