Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Specifications
Brand Name :
JQ/OEM
Model Number :
GYTA53+33
Certification :
ISO9001 ROHS CE FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum,ply wooden drum
Fiber type :
G652D
Color :
Black
Jacket :
HDPE
Fiber count :
4-144cores
Product name :
Stranded loose tube armored cable
Oem :
Available
Application :
Underground Buired
Name :
Underground Directly Buried Armored Cable
Cable type :
Double Jacket Double armored
Armored :
Aluminun tape+Steel wire

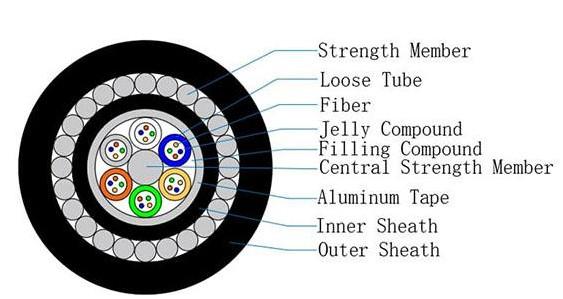

Description

Submersible Cable 24 32 36 48 72 96 144 Cores G652D SM Underwater Submarine Optical Cable GYTA33

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information

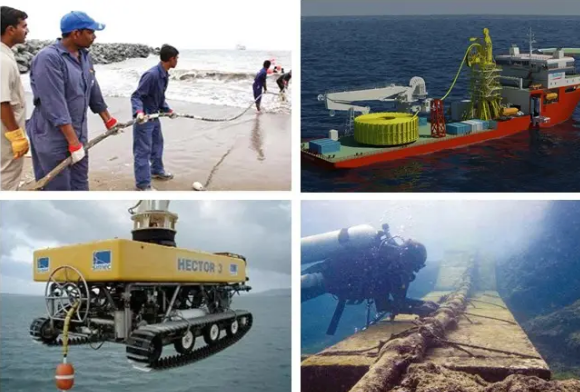

Application

Suitable for directly buired laying or Underwater method

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Optical Characteristics

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

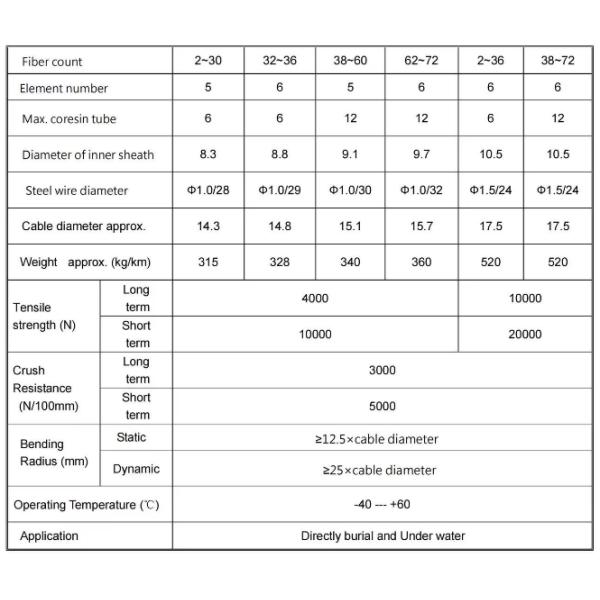

Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 13.5 245

10
Times
Diameter

20
Times
Diameter

 4000 10000 3000 5000
32-36 13.8 252 4000 10000 3000 5000
38-60 14.5 275 4000 10000 3000 5000
62-72 15.0 285 4000 10000 3000 5000
74-96 15.5 295 4000 10000 3000 5000
98-120 16.0 305 4000 10000 3000 5000
122-144 17.0 315 4000 10000 3000 5000
146-216 19.0 345 4000 10000 3000 5000
218-240 20.5 365 4000 10000 3000 5000
242-288 21.5 395 4000 10000 3000 5000

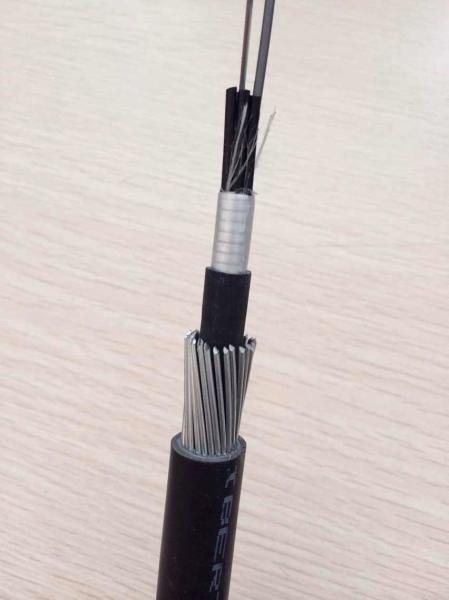

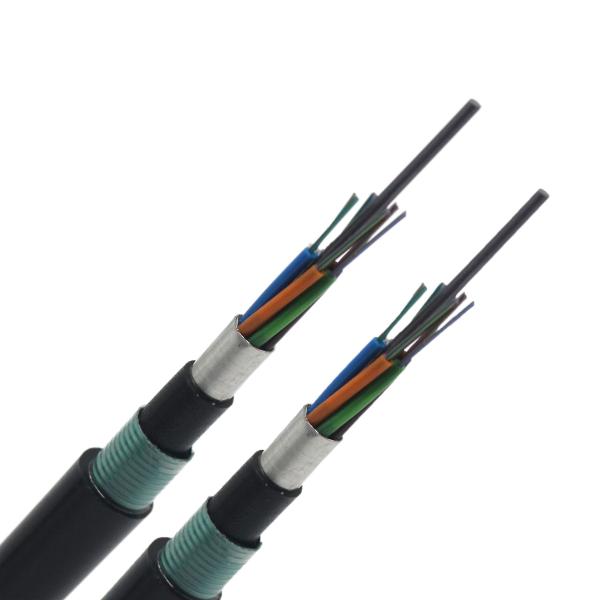

Product show

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Related-products: GYTA53

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

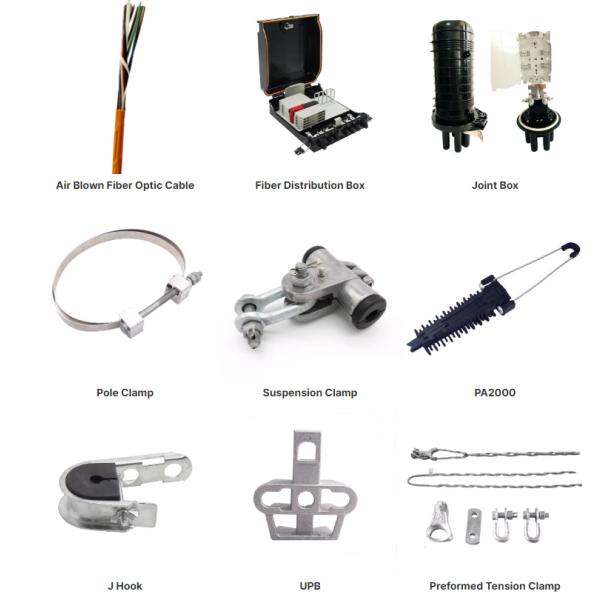

Fiber Cable & Fiber Accessories

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

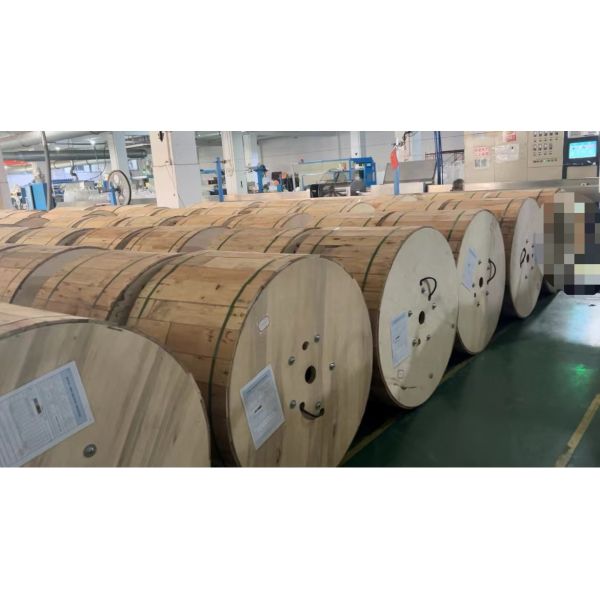

Packing

1/2/3/4km or customized length export wooden drum

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5.OEM/ODM is available.Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying

6. Professional manufacturer.

Welcome to visit our factory!
