GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYTA 12core/24core/48core
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day
Packaging Details :
wooden drum
Fiber type :
G652D/G657A1
Oem :
Available
Application :
Duct/underground/direct burial
Number of conductors :
24core 48core 72core
Structure :
Stranded loose tube
Operating temperature :
-40 ~ +60 C
central strength member :
Aluminium Wires
Armored :
Corrugated Steel Tape/Aluminium Tape
Fiber Protection :
Loose tube
Loose Tube :
PBT
Fiber Counts :
2-288 hilos
Installation :
self- supporting Aerial,aerial, Duct
Outer Jacket Materail :
PE
Number Of Fiber :
1-12 Core(1-12)
Model Name :
GYXTC8S
Jacket Color :
Black/Yellow/Orange/Green/Blue/Purple/Gray
Fiber Type :
Single-mode/Multi-mode
Frp :
FPR Central Strength Member
Sheath :
PVC,LSZH
Allowed Tensile Strength :
100N<1000N
Armoured :
Steel tape
Single Armour Material :
Corrugated aluminium tape
Description

Armoured Outdoor 48 96 Core Fiber Optic Cable – GYTA Duct Type

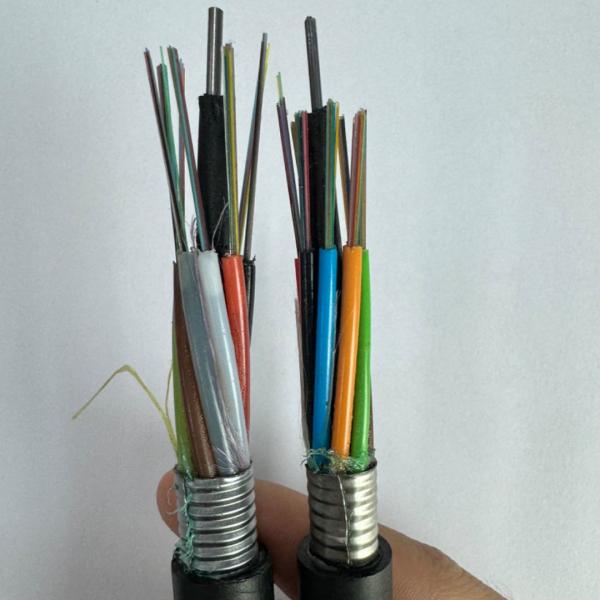

The GYTA fiber optic cable is designed for outdoor duct and aerial use. It features loose tubes filled with gel and wrapped in longitudinal steel tape (PSP) for excellent mechanical protection and moisture resistance. Water-blocking materials between the steel tape and the tubes ensure the cable remains compact and sealed. Finished with a durable polyethylene (PE) outer sheath, this cable performs reliably in harsh environments. It's ideal for metro networks, access systems, and inter-bureau communications—especially where high fiber density is needed.

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

Application:

1 ,Interbuilding voice or data communication backbone.

2 ,Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm

<3.0 dB/km

<3.3 dB/km

1300 nm

<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km

1550 nm

<0.22 dB/km

<0.23 dB/km

Bandwidth

850 nm

>500 MHz-km

>200 Mhz-km

1300 nm

>500 MHz-km

>500 Mhz-km

Numerical Aperture

0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength λcc

<1260 nm

<1450 nm

Structure and Technical Specifications

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~36

10.3

109

6

6

1500

600

1000

300

38~72

11.5

145

12

6

1500

600

1000

300

74~96

13.5

175

12

8

1500

600

1000

300

98~120

14.8

209

12

10

1700

600

1000

300

122~144

16.6

249

12

12

2000

600

1000

300

146~216

16.7

254

12

18(2 layers)

2000

600

1000

300

218~288

19.0

325

12

24(2 layers)

2500

600

1000

300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

Company Information

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a specialized manufacturer of fiber optic cables based in Guangzhou, China. We offer a full range of outdoor and indoor fiber cables, FTTH drop cables, and fiber patch cords. Our products are certified by ISO9001, FCC, ROHS, and CE. With strong OEM capabilities, we can customize or design fiber cable structures to meet your specific needs.

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

Support OEM:

Print your logo on jacket : Customer logo+ GYTA 12 Core +G652D Cable .....2024 ....Meter

Such as :

GYTA Factory Price Armored Aluminum Tape Outdoor Fibre Optic Cable For Direct Burial

Delivery:


For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details


Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

FAQ

  1. Are you a manufacturer?
    Yes, we are a factory based in Guangzhou, China. You're welcome to visit us.

  2. What is the minimum order quantity?
    Our MOQ is 1 kilometer. We support trial orders and new projects.

  3. Can I get a sample?
    Yes, we offer free samples. You only need to cover the express shipping cost.

  4. What payment methods do you accept?
    We accept L/C, T/T, Western Union, and PayPal.

  5. How long is the delivery time?
    Normally 3–7 working days, depending on the order quantity.

  6. Do you offer customized products and logo services?
    Yes, OEM and ODM services are available. Feel free to contact us for details.
