Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install
Specifications
Brand Name :
Jiqian/Customize
Model Number :
GYTS
Certification :
ISO9001/CE/ROHS
Place of Origin :
Guangdong, China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 working days ,it depends on your order
Packaging Details :
wooden drum
Fiber Count :
2-288 Core
Fiber Type :
G652D,G657A
Application :
Overhead/Aerial ,Pipe/Duct Laying
Fiber Brand :
YOFC/Fiberhome/Fujikura/Corning
Jacket :
PE,MDPE,LSZH,PVC
Color :
Black,Customized
OEM :
Yes
MOQ :
1KM
Type :
Singlemode & Multimode
Outer Sheath Color :
Black
Messenger :
Steel
Cable Use :
Aerial/Duct
Port :
guangzhou/shenzhen
Fiber Diameter :
9/125μm (Single-mode), 50/125μm or 62.5/125μm (Multi-mode)
Armor Material :
Steel Tape/Steel Wire
Sheath :
Double sheath
Fiber Grade :
G652D/ G657A1
Single Armour Material :
Corrugated aluminium tape
Cable Type :
Self-supporting fiber optic cable
Useful :
FTTX
Crush Resistance :
1000N/100mm
Outer Jacket :
PE (Poly Ethylene)
Loose Tube Material :
PBT or Jelly
Description

Underground Duct 48 96 144 Core GYTS Cummunication Cable Single Mode Armored Fiber Optic Cable

Product Description

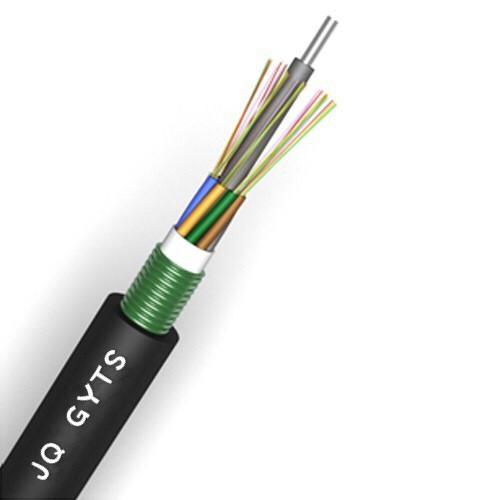

GYTS outdoor fiber optic cable is designed for duct and aerial installations. It is available in both single-mode and multimode types, with fiber counts ranging from 2 to 144 cores. A similar model, GYTA, is also offered. This cable ensures excellent mechanical strength and temperature resistance. The filling gel inside the loose tube provides essential fiber protection, while the PE outer sheath shields the cable from UV exposure.

Features
• Central steel wire and fillers enhance structure and protect fiber tubes.
• Steel tape armor improves mechanical durability.
• UV-resistant and moisture-proof design.

Applications
• Ideal for outdoor distribution networks.
• Suitable for aerial and duct (pipeline) installation.
• Used in long-distance transmission and LAN connections.

Details Images

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

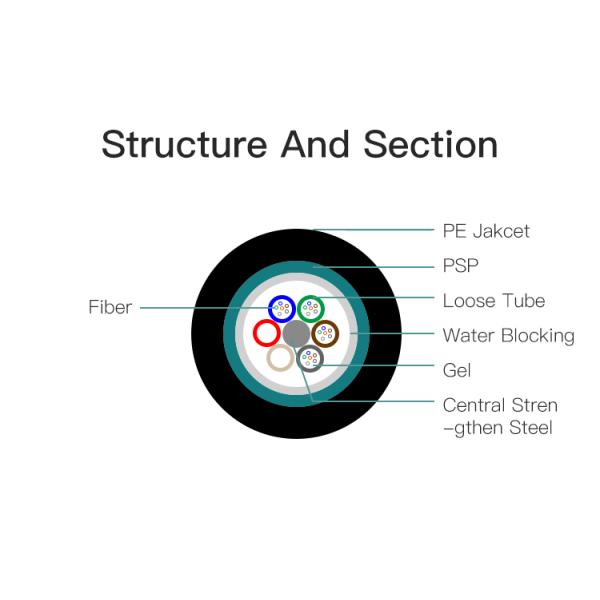

Description:

In GYTS cables, single-mode or multimode fibers are housed in loose tubes filled with water-blocking gel.
These tubes and fillers are stranded around a central strength member to form a compact circular core.
A layer of PSP (steel tape) is wrapped around the core, which is also filled with a protective compound to enhance water resistance.
Finally, the cable is finished with a durable PE outer sheath.

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

Characterisics

  1. Precise excess fiber length design ensures strong mechanical performance and stable operation across temperature variations.
    Critical protection is provided to safeguard fiber integrity.

  2. Multiple water-blocking measures are implemented to enhance moisture resistance:

  • Central strength member made of single steel wire

  • Water-blocking gel inside loose tubes

  • Fully filled cable core for complete water ingress prevention

Dimensions of Cable Constructions

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.4 9.0±0.3 80
6 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
8 1+5 8 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
12 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
24 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 85
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 100
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 105
60 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 110
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6±0.3 122
96 1+8 12 2.2±0.1 1.6/3.5 1.6 12.0±0.3 160
144 1+12 12 2.2±0.1 2.0/6.4 1.8 15.6±0.3 240
216 1+6+12 12 2.2±0.1 2.2/2.2 1.8 16.0±0.3 270
288 1+9+15 12 2.2±0.1 2.2/4.3 2.0 18.2±0.3 282

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

There are twelve fiber color code.They are A grade fiber.

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

All products will have been strictly quality checked in house before packing.

All products will be well packed before shipment.

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install


Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

Max 144 Core GYTS Armored Underground Duct Fiber Optic Cable Direct Burial Install

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

1. Q: Are you a factory or a trading company?
A: We are a direct factory.

2. Q: What is your minimum order quantity (MOQ)?
A: The MOQ for fiber optic cable is 1 kilometer.

3. Q: Which fiber brands do you use?
A: We commonly use YOFC, Fiberhome, and other trusted brands.

4. Q: Do you accept small orders?
A: Yes, we support small orders, especially for new projects. We understand that every business starts with small steps.

5. Q: What is your delivery time?
A: Typically 5–7 days after order confirmation. The exact time depends on the quantity.

6. Q: Do you offer customized products and branding?
A: Yes, we provide OEM service with custom products and logos.

7. Q: What are your payment terms?
A: We accept T/T, L/C, and Western Union. A 30% deposit is required, with the balance paid before shipment.
