Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GJFJV
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
2km/Wooden drum
Name :
Indoor fiber optic cable
Outer sheath :
PVC,PE,LSZH
Cable Type :
tight buffer fiber with aramid yarn
Strength material :
Aramid yarn
Color :
Orange,Yellow,Blue
Core :
2-48fiber
fiber type :
Multi mode
Packing :
Wooden Drum
Allowed Lateral Pressure :
100(N/100mm)<1000(N/100mm)
Diameter :
6.0mm
Layer :
a layer of aramid yarn
Number Of Fiber :
48
Indoor :
Indoor Fiber Optic Cable
Fiber Buffer :
PVC or LSZH
Usage :
Indoor distribution
Standards :
IEC 60794, TIA/EIA-568-C.3, UL, RoHS
Fiber Core :
1-24 Core
Fiber Grade :
Various Grades
Model No :
GJFJBV
Temperature :
-40 to +70 °C
Operation Temperature :
-20℃-+60℃
Bending Radius :
10D/20D (mm)
Multi Mode :
0M1, 0M2, 0M3 and 0M4)
Description
ODM Manufactory Supply Indoor Multi-Mode Cable (6/12/24 Core GJFJV)
This multi-purpose distribution cable utilizes 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with aramid yarn for strength and sheathed in PVC or LSZH (low-smoke, zero-halogen) material. The tight-buffered design, available in Φ600μm or Φ900μm diameters, ensures durability and performance. High-quality fibers, precision manufacturing equipment, and optimized tooling guarantee reliable product performance.

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Features:
Excellent mechanical and environmental performance
Compliant with flame-retardant standards
Sturdy yet flexible jacket for easy installation and splicing
High-capacity data transmission
Customizable to meet diverse market and client needs

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Cable diameter

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm

Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight

 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

Applications:
Pigtails & patch cords
Equipment interconnections
Indoor/outdoor cabling (ideal for distribution networks)
Fiber optic connections (communication rooms & distribution frames)

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Product Detail

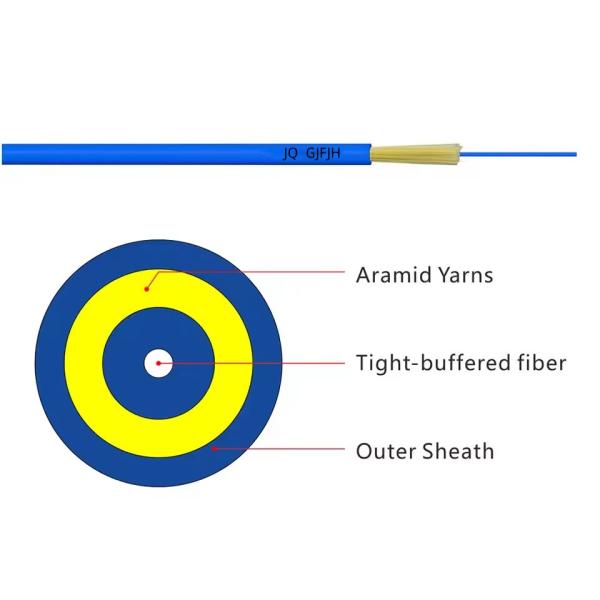

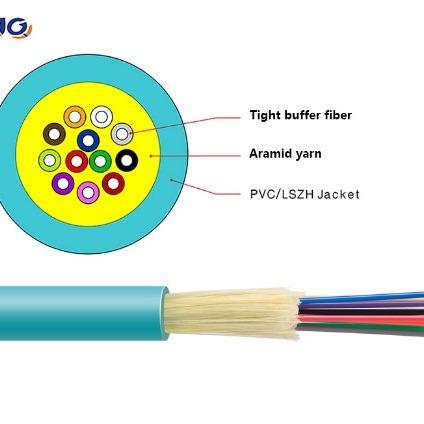

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Packing

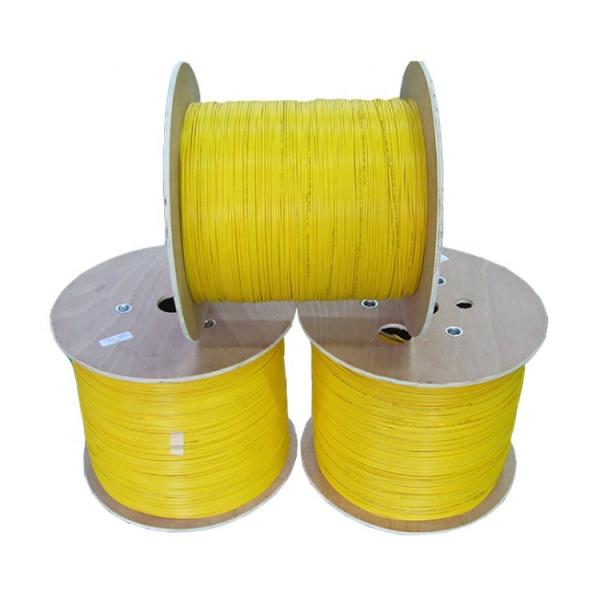

2km or customized length export wooden drum

Buy GJFJV Indoor Tight Buffer Fiber Optic Cable Colorful LSZH Jacket G652D

Frequently Asked Questions (FAQ)
1. Why choose us?
Professional OEM/ODM manufacturer – Low MOQ & free samples available.
Guaranteed quality – Stable, high-performance products.
Efficient solutions – Fast response & customization support.
Competitive pricing – Cost-effective to maximize your benefits.
2. Do you accept OEM/ODM orders?
Yes, we fully support OEM/ODM services and welcome custom requirements.
3. Can you print our logo?
Yes, we offer logo printing on both products and packaging.
4. What shipping methods do you offer?
All options available: express delivery, sea/air/land freight.
5. What payment terms do you accept?
We support TT, LC, Western Union, Alipay, and other methods.
6. What’s the delivery time?
Typically 3-7 working days, depending on order quantity. Rest assured, we prioritize fast dispatch after payment.
