MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
MGXTSV
Certification :
ISO9001, FCC, ROHS/CCC/FCC
Place of Origin :
Guangzhou, China
MOQ :
5 km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200KM Per day
Delivery Time :
6 days
Packaging Details :
iron drum
Color :
Black /blue/green
Jacket metarial :
LSZH (low smoke zero halogen)
Strength member :
steel wire
Fiber count :
2-288 cores
Installation :
Burial/aerial/duct
armor :
steel tape
Product name :
mining fiber cable
fiber type :
G652D G657A/OM3/OM4/OM5
Fiber Account :
2-72 CORE
Lead Time :
5 days
Tuber Material :
PBT
Cable Type :
Single-mode/Multi Mode/MM/Duplex
Crush Resistance :
1000N/100mm
Cable Use :
Direct burial/ Duct laying
Strength Member :
Aramid yarn
Csm :
FRP
Number Of Cores :
12 Cores
Usage :
Patchcords/MTP/MPO
Armoured :
Yes
Leading Time :
3 working days
Fiber Brand :
YOFC/Fiberhome/Corning/Fujikura
Drum Length :
5KM or Customized
Out Sheath :
LSZH， PE
Cable Color :
Black
Standard Structure :
Central loose tube
Armour Material :
Corrugated Steel Tape
Strenght Member :
FRP
Optical Fiber :
Corning or YOFC
Self Supporting Member :
Steel wire
Sheath :
PE
Number Of Conductors :
12 48 96
Outer Jacket Material :
PE(Black)
Warranty :
25 Years
Armored :
Steel wire
Type :
Fiber optic cable
Armor :
Corrugated steel tape
Description

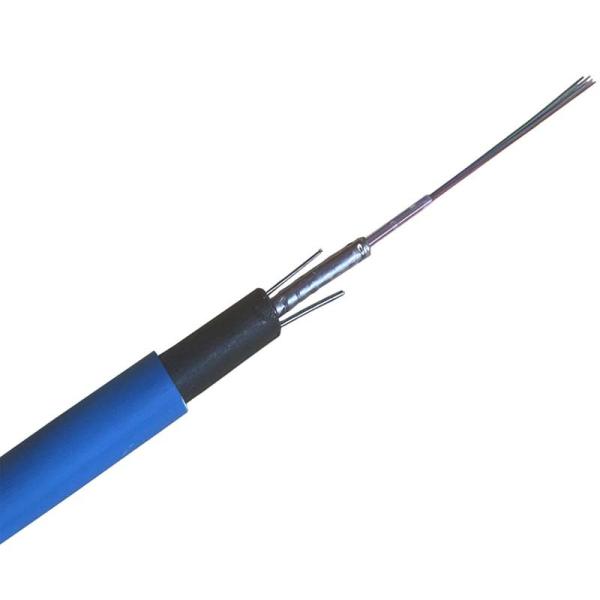

MGXTSV Anti-Rodent Flame-Retardant Mining Fiber Cable

Product Overview
The MGXTSV mining fiber optic cable is engineered for harsh environments such as coal, gold, and iron ore mines. In addition to standard fiber optic performance, it offers enhanced flame-retardant and rodent-resistant properties, ensuring stable communication even in emergencies. It meets safety certification standards issued by the State Coal Mine Safety Supervision Administration and is the only optical cable model officially approved for mining use.

Designed to the stringent specifications of coal mine cables, MGXTSV is suitable for tunnels, shafts, and other demanding underground installations.

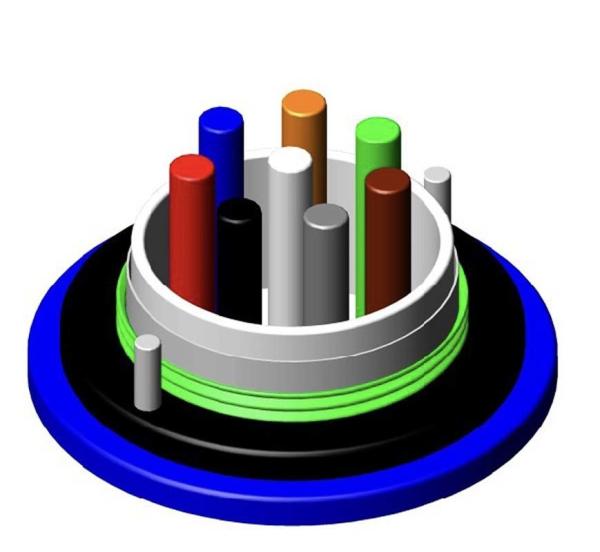

Key Features

  • Strong mechanical and thermal resistance.

  • High-strength loose tube for durability and waterproofing.

  • Special filling compound for crush resistance and fiber protection.

  • Comprehensive moisture and rodent protection, including:

    • Steel wire central strength member

    • Loose tube and core filling compounds

    • PSP armor layer

    • Water-blocking materials to prevent longitudinal seepage

  • Blue flame-retardant PVC outer sheath for fire safety.

Applications

  • Backbone, access, and FTTH networks using microtubule technology.

  • Cost-effective upgrades for aging urban infrastructure.

  • Certified to MT386-1995 flame-retardancy standards for coal mine cables.

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-12 9.0 115

10
Times
Diameter

20
Times
Diameter

 1000 1500 1000 1500
16-24 10.5 135 1000 1500 1000 1500

Tips: all the data ablove is reference to our factory, pls contact Philip for more details ,

WA:008613422342788

Detail product pictures

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design


MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

Mining application

factory shows

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

MGXTSV LSZH Armored Mining Fiber Optic Cable – Heavy-Duty, Flame Retardant & Rodent-Resistant Design

FAQ

Q1: What warranty do you provide?
We offer a 10-year warranty plus lifetime maintenance support.

Q2: Can you do OEM?
Yes, we can customize products with your logo or label on the product or packaging.

Q3: Are samples free?
Yes, we provide free samples upon request.

Q4: Are you a manufacturer?
Yes, we are a professional fiber optic cable manufacturer producing ADSS, MPO Breakout Cable, Fiber Optic Patch Cord, and more. Our products are exported to Europe, South America, and other markets.

Q5: What are your main products?
Our range includes outdoor fiber optic cables (GYTA33, GYXTC8Y, ADSS, GYTA, GYFTS, ASU, GYXTW), indoor cables, and FTTH drop cables.

Q6: Do you have material certificates?
Yes, our raw materials are sourced from long-term partners with ISO9001 and ROHS certifications.
