Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Specifications
Brand Name :
JQ/OEM
Model Number :
Dome splice closure (GJS20-DR09A)
Certification :
IS0900/ROHS/CE-EMC/FCC SDOC
Place of Origin :
China
MOQ :
10PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300PCS per day
Delivery Time :
5-8 work days
Packaging Details :
Cartoon box
Installation Way :
Wall Mounted, Pole Mounted
Material :
Higt strength polypropylene(PP)
Color :
Black
Dimension :
120 * 380mm
Product name :
Mini Joint closure
Application :
FTTH FTTB FTTX Network
Port :
5
IP rating :
IP68
Sealing of cables :
heatshink seal
Cable diameter range :
8~18mm
Internal Material :
ABS
Description

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

Advantage:

The closure can be used induct, buried, overhead..etc

High quality impact material.pp and internal is ABS

Designed for ftth with adapter if need.

Fiber storage with brasket bracket or back-bracket choice

Modular fiber management system

Cable diameter range: 9~18

Sealing of cables: heatshink seal .

Quality warranty:2 years

Life span:more than 20 years

IP rating is IP68

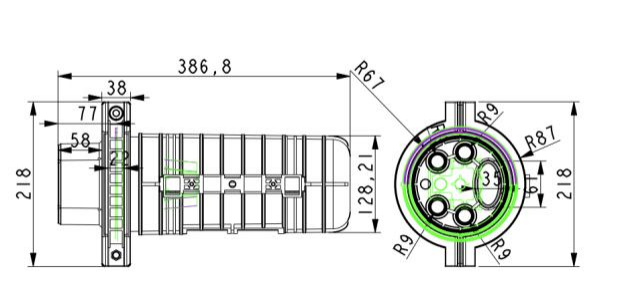

1,Dome Size:

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

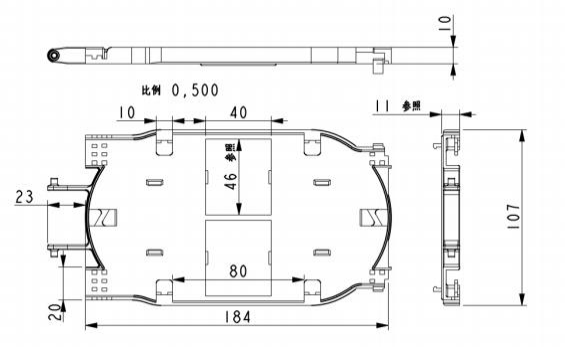

2,Tray Size:

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

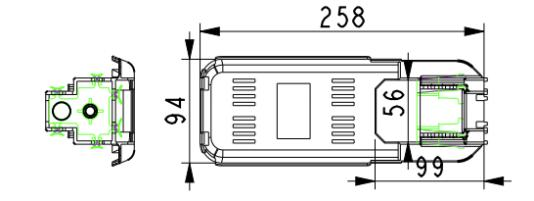

3,Stroge Size:

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

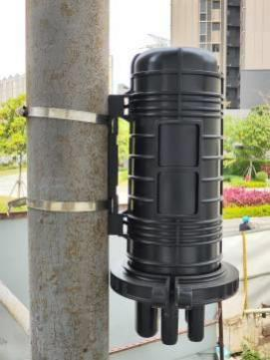

Mount on the pole:

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

Order information

Packing Pack pcs Size(mm) Weight(kg) mark
carton 6 450x450x600 12

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

Fiber Optic Splice Closure Shipping:

1.Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)

2.Airport to Airport: by air

3.Seaport to Seaport: by sea (our factory is in Guangzhou city.)

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure

Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
