Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC
Specifications
Brand Name :
JQ/OEM
Model Number :
GDTS/GDTA
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km Per day
Delivery Time :
3-5 dyas
Packaging Details :
1/2/3/4/5 km in one wooden drum
Jacket material :
PE
Outer diameter :
9mm
Fiber count :
4-144 Core
Strength member :
Steel tape
Product name :
Hybrid Optic Fiber Cable
Fiber type :
YOFC or as request
Application :
Aerial,Duct
Color :
Black
Length :
2km or customized length
Description

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Applications:
1.Used in outdoor applications that require both optical fiber and copper wire elements for communication and power
2.Copper wire can power remote electronics used in fiber optic communications
3.Copper wire can also be used for low data rate data transmission
4.Deployable cables have been used in network and private broadcast applications around the world
5.Cables can be designed for your custom applications
Standards:
YD/T 901 / IEC 60794-3-10
Temperature Range:
Transportation:
-40℃~+70℃
Installation:
5℃~+50℃
In use:
In use:-40℃~+70℃

Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

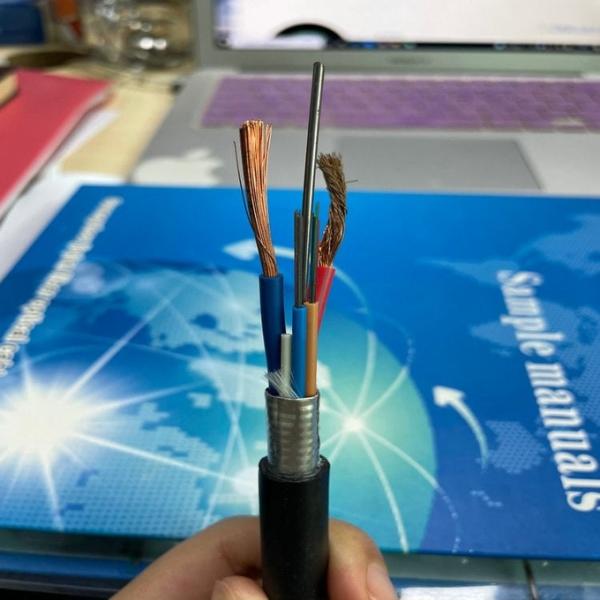

Product Image

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

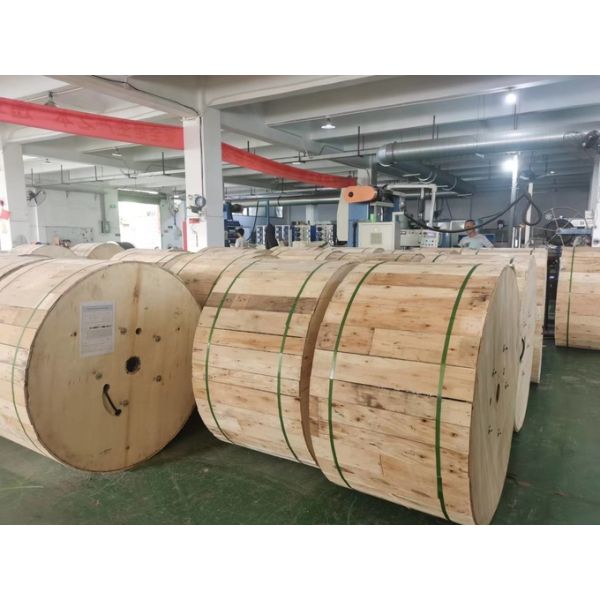

Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:3-7work days

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

Hybrid Cable/Power Cable 2-12cores GDTS Photoelectric Fiber Optic Cable OPLC

OPLC, GDTS, Photoelectric composite cable,Hybrid fiber optic cable with power copper wire, welcome to inquiry!!
