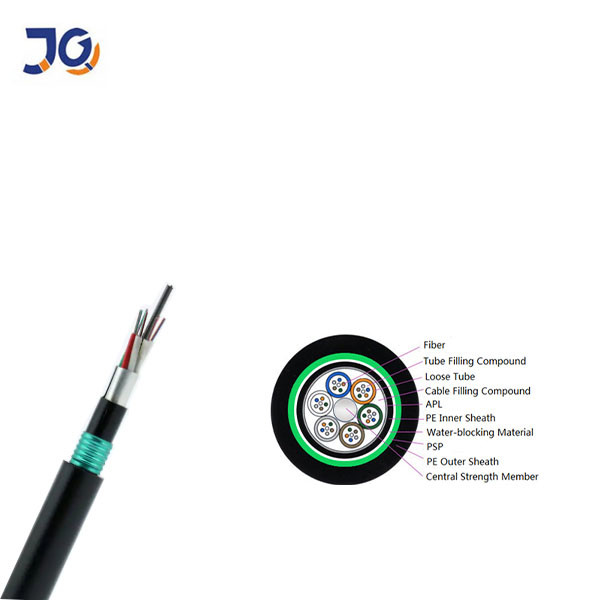

Factory directly sell Fibre Optic Cables GYTS GYTA GYTS53 GYTA53 24 48 96 144 Core Fiber Optic Cable

G652D Fiber Otic Parameter:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Mechanical and Environmental Characteristics:

Item	Unit	Specifications
Tension(Long Term)	N	1500
Tension(Short Term)	N	3200
Crush(Long Term)	N/10cm	1500
Crush(Short Term)	N/10cm	4200
Min. Bend Radius(Dynamic)	mm	20D
Min.Bend Radius(Static)	mm	10D
Installation Temperature	℃	-40～+60
Operating Temperature	℃	-40～+70
Storage Temperature	℃	-40～+70
Repeating bending	Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion	Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy:450g×1m; radius of hammerhead:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements

Shipping:By sea LCL/FCL

Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome

3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
