GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYTA53
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
G652D Single mode or as your request
Color :
Black or customized
Jacket :
PE,MDPE,LSZH,PVC,HDPE
Fiber count :
4-144Cores
Product name :
Armored Fiber Optic Cable
Length :
2km or customized length
Installation :
Underground Directly Buried
Fiber Brand :
YOFC/Fiberhome/Fujikura/Corning
Description

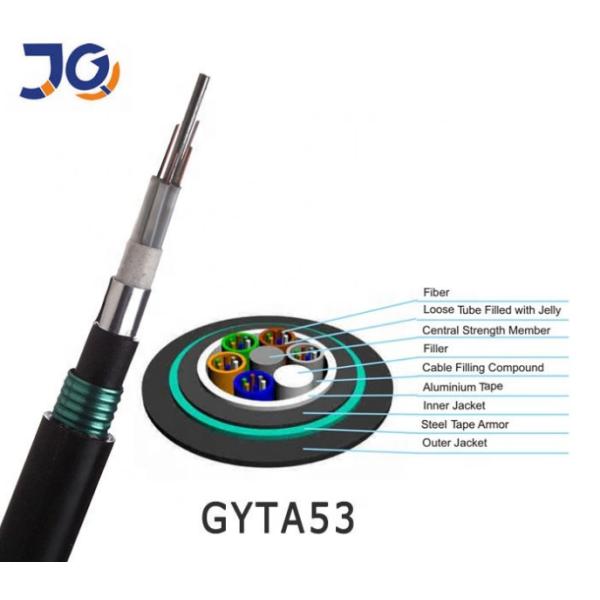

Armored Directly Buried 4-144 Core Fiber Optic Cable GYTA53

250µm fibers are placed in high-modulus loose tubes filled with water-resistant compound.

A central steel wire provides strength, with tubes stranded around it to form a compact cable core. APL ensures moisture protection, followed by a PE inner sheath.

PSP armor adds mechanical strength, and the cable is finished with a durable PE outer sheath.

Features

  • Strong mechanical and temperature performance

  • Water-resistant, high-strength loose tube

  • Special filling compound protects fibers

  • Compact structure prevents tube shrinkage

  • UV-resistant PE jacket for outdoor use

  • Central steel strength member for added support

  • Full core filling for moisture protection

  • APL moisture barrier enhances waterproof performance

Application

Suitable for directly buired laying method

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 12.0±0.2 145
6 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
8 1+5 8 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
12 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
24 1+5 6 1.9±0.1 1.4/1.4 1.6 12.0±0.2 145
36 1+6 12 1.9±0.1 1.6/1.6 1.6 13.2±0.2 155
48 1+5 12 2.2±0.1 1.6/1.6 1.6 13.2±0.2 155
60 1+5 12 2.2±0.1 1.61.6 1.6 13.2±0.2 160
72 1+6 12 2.2±0.1 2.0/2.0 1.6 13.2±0.2 180
96 1+8 12 2.2±0.1 1.6/3.5 1.6 15.4±0.2 220
144 1+12 12 2.2±0.1 1.8/6.4 1.6 18.5±0.3 270

GYTA53( Aluminium polyethylene laminate)

GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable

GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable

GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable

Packing

1/2/3/4km or customized length export wooden drum

GYTA53 4 144 Core Outdoor Armored Fiber Optic Cable Direct Burial Communication Cable

FAQ

1. Are you a manufacturer?
Yes, we are a manufacturer with 10 years of experience based in Guangzhou.

2. How do you ensure quality?
All products are fully tested before shipment. Free samples are available.

3. Do you accept small orders?
Yes, trial orders are supported.

4. What is your delivery time?
Usually 3–7 working days, depending on quantity.

5. Do you offer OEM service?
Yes, customization and logo printing are available.
