Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYTA / GYTS
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber type :
YOFC,Fiberhome,as request
Color :
Black or Customized
Jacket :
PE,MDPE,LSZH,PVC,HDPE
Strength member :
steel wire/FRP Glass yarn
Fiber count :
2-288 Cores
Installation :
Aerial & Duct
Armored :
Steel tape
Application :
Network/long distance communication
Description

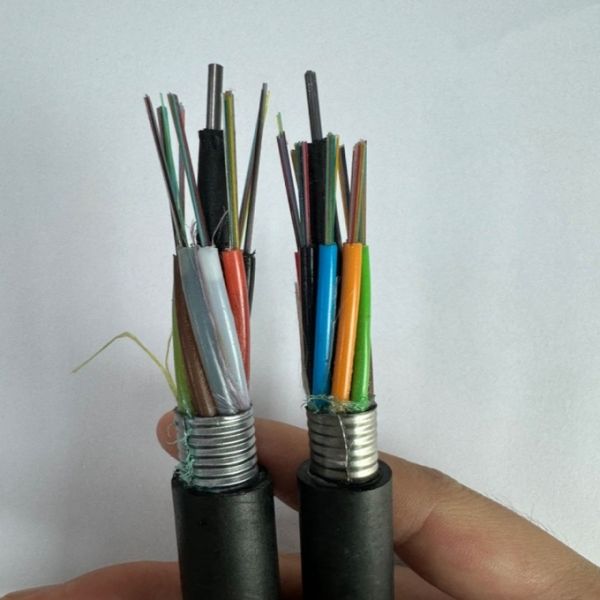

GYTA / GYTS Outdoor G652D Fiber Optic Cable (12–24 Core)

Key Features

  • G652D single mode fiber for low attenuation and stable long-distance transmission

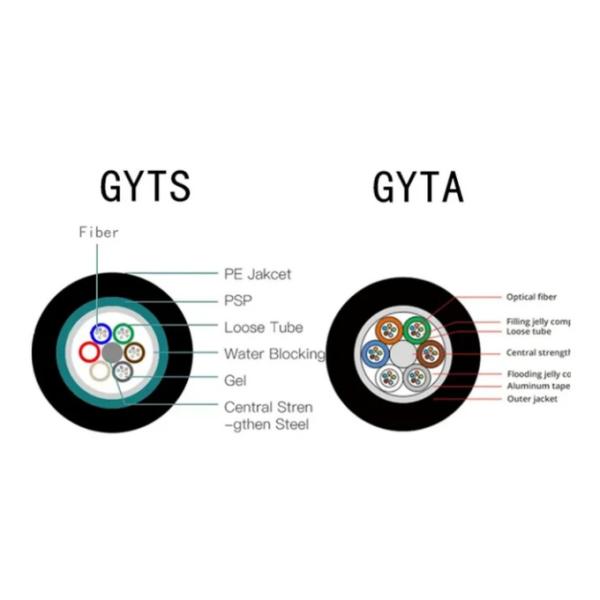

  • PBT loose tube structure for enhanced protection and durability

  • Central steel strength member for improved tensile performance

  • APL moisture barrier for reliable water resistance

  • PE outer sheath with excellent weather resistance

  • Compact structure suitable for outdoor environments

  • High mechanical strength for stable long-term operation

Applications

  • Urban duct communication networks

  • FTTX access networks

  • Long-distance backbone transmission

  • Telecom infrastructure projects

  • Data transmission networks

  • Outdoor duct installation environments

Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape

Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F 288F
Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Mechanical Characteristic

Tensile (N) Long term 600
Short term 1500
Crush (N/100mm) Long term 300
Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
Static 10xD
Temperature Range (℃) -20~+70

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

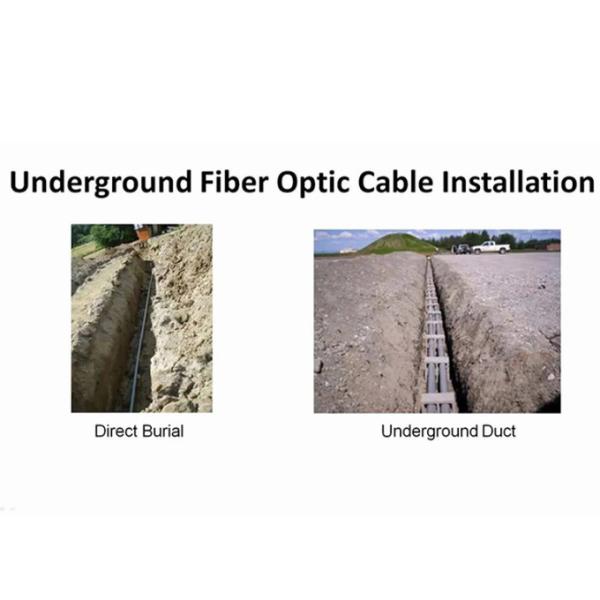

Application

Suitable for external application in duct and aerial

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

Packing details

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

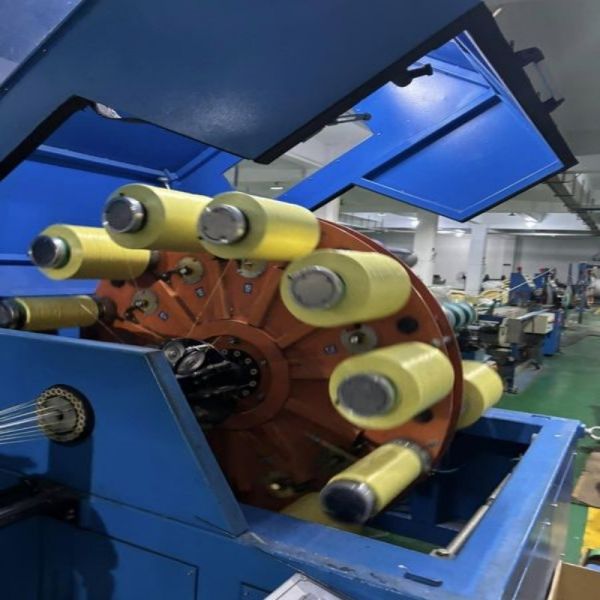

Production equipment

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

Outdoor GYTA 12 24 Core Single Mode G652D Fiber Optic Cable for Communication Networks

FAQ

1. What fiber type is used?
G652D single mode fiber for stable long-distance transmission.

2. Is it suitable for outdoor use?
Yes, the PE sheath and APL moisture barrier ensure strong outdoor performance.

3. What installation method is recommended?
Mainly designed for duct installation.

4. What is the fiber core range?
Available in 12 to 24 cores.

5. Do you support OEM?
Yes, customization and logo printing are available.
