ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
ADSS-4C/12FC/24C/48C/96C/144C
Certification :
ROHS/ISO/CE/FCC
Place of Origin :
GuangZhou China
MOQ :
1KM
Price :
Inquiry for price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden package or cartoon box
Cable Diameter :
9.7mm、10mm
Jacket Color :
Black,Customized
Operating Temperature :
-40℃~+70℃
Application :
Overhead/Aerial ,Pipe/Duct Laying
Fiber Count :
2-144 CORES
Storage Temperature :
-40℃~+85℃
Bending Radius :
Static: 10D/Dynamic: 20D
Span :
50/100/200/300/400 Meters
Description

ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable

Product Introduction:

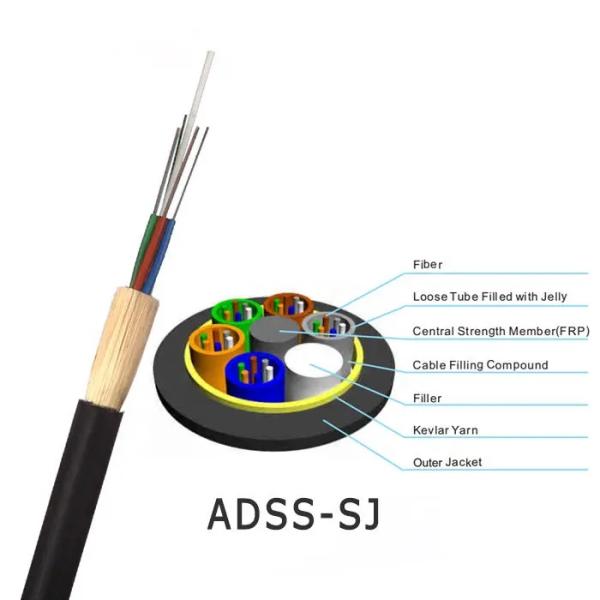

ADSS fiber optic cable features a loose tube stranded structure with FRP strength member, designed for reliable aerial installation without metallic components.

Key Features:

  • All dielectric design with FRP central strength member
  • Loose tube structure with water-resistant filling compound
  • Aramid yarn reinforcement for high tensile strength
  • PE or AT outer sheath for outdoor protection
  • Lightweight structure for aerial installation

Applications:

  • Overhead aerial fiber optic installations
  • Power line communication networks
  • Long-distance backbone transmission
  • Telecom and broadband networks

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

ADSS Fiber Optic Cable FAQ

Q1: What is ADSS fiber optic cable used for?
A: It is used for aerial installations on utility poles and power lines.

Q2: What does ADSS stand for?
A: ADSS stands for All Dielectric Self Supporting.

Q3: Does the cable contain metal components?
A: No, it uses a non-metallic FRP strength member.

Q4: What provides tensile strength in the cable?
A: Aramid yarn reinforcement provides high tensile strength.

Q5: What outer sheath options are available?
A: PE or AT outer sheath for different outdoor environments.
