GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTY83
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber type :
G652D Single mode or as your request
Length :
as required
Color :
Customized
Cable Structure :
Multi-Loose Tube None Armor
Loose tube :
PBT
Central strength member :
FRP
Jacket :
Double Sheath
Package :
Wooden Drum/Customized
Application :
Outdoor aerial and duct
Oem :
Available
Description

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

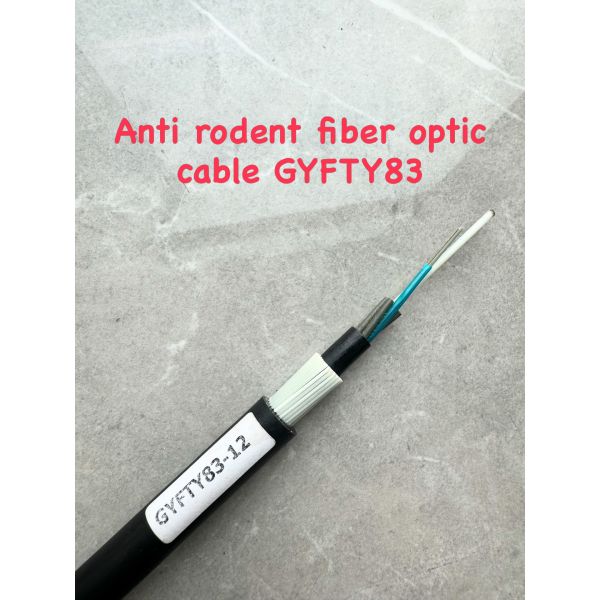

GYFTY83 fiber optic cable is an anti-rodent outdoor cable designed for harsh environments, providing reliable performance and strong protection against physical damage and pests.


Key Features:
FRP armored structure for rodent protection
High resistance to crushing and impact
PE or PVC outer jacket for weather resistance
Resistant to moisture UV and chemicals
Stable performance in extreme environments

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

Applications:
* Outdoor harsh environment installations
* Areas with high rodent activity
* Underground and duct installations
* Telecom and backbone networks

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

Optical Characteristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m
Attenuation 850 nm <3.0 dB/km <3.3 dB/km
(+20X) 1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.34 dB/km <0.40 dB/km
1550 nm <0.21 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Technical parameters

cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
(MM) (KG) allowable Crush load(N/100mm)
Short term Long term Short term long Term short term long Term
2-36 12.8 170 3000 1000 3000 1000 20D 10D
38-72 14.2 212 3000 1000 3000 1000 20D 10D
74-96 15.7 245 3000 1000 3000 1000 20D 10D
98-120 17.3 289 3000 1000 3000 1000 20D 10D
122-144 18.8 328 3000 1000 3000 1000 20D 10D

Certification:

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable


4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM


6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.


7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.


8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
