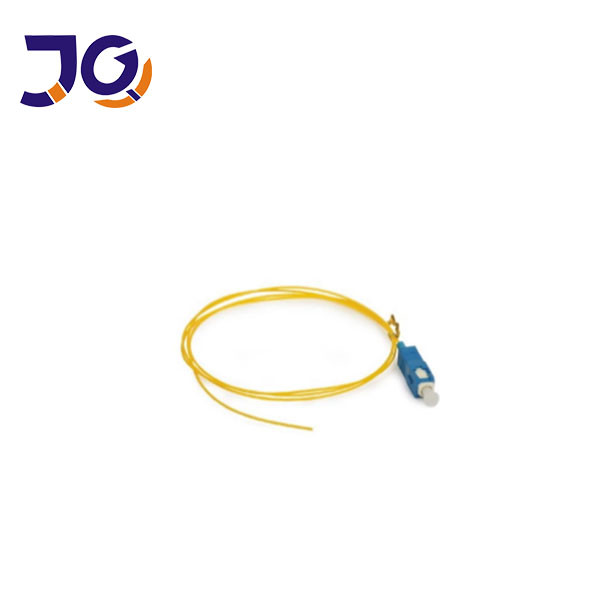

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
Fiber Optic Pigtail
Certification :
ISO 9001,ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou, China
MOQ :
50PCS
Payment Terms :
Western Union,T/T, L/C
Supply Ability :
30000pcs per day
Delivery Time :
3-5 work days
Packaging Details :
PE bag or plastic box and Cartoon box
Application :
FTTH FTTB FTTX Network
Connector type :
SC UPC
Length :
3 Meters or Customized
Color :
customized
Cable diameter :
0.9/2.0/3.0mm
Ferrule End-face :
PC/UPC/APC
Jacket material :
PVC/LSZH/PE
Product name :
fiber optic pigtail
High Light :
Pigtail SC/UPC,12colors,0.9mm cable,Multimode for splicing in Patch Panel​
Transmitter Wavelength :
1310nm
Item :
optical fiber patch cord
Fiber Type :
G.652D/G.657A1/G.657A2
Network :
4g, 5G
Fiber No :
1 (Simplex)
Products :
OM4 SC-SC 12Core Fiber Optic Patch Cable
Fiber Counts :
9/125um, 50/125um,62.5/125u
Return Loss :
>50dB(UPC)/>60dB(APC)
Cable Diammeter :
2.0 3.0mm
Ferrule :
APC
Polish Type :
UPC to UPC
Cable Length :
1m/2m/3m/5m/10m/Customized
Fiber Mode :
Single Mode
Cable Type :
Single-mode/Multi-mode
Number Of Cores :
Single Core
Wavelength :
1260-1650nm
Optional Connectors :
LC/ SC/FC/ST
Inner :
Ceramic
Polishing :
PC or UPC
Features :
High Performance in IL&RL
Number Of Conductors :
1
Jacket :
PVC/LSZH
Description

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail

Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.

Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems

Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80

Detailed Image
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

FAQ – Frequently Asked Questions

1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.

2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.

3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.

4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.

5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
