Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable
Specifications
Brand Name :
Jiqian/Customize
Model Number :
GJFJV
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day
Packaging Details :

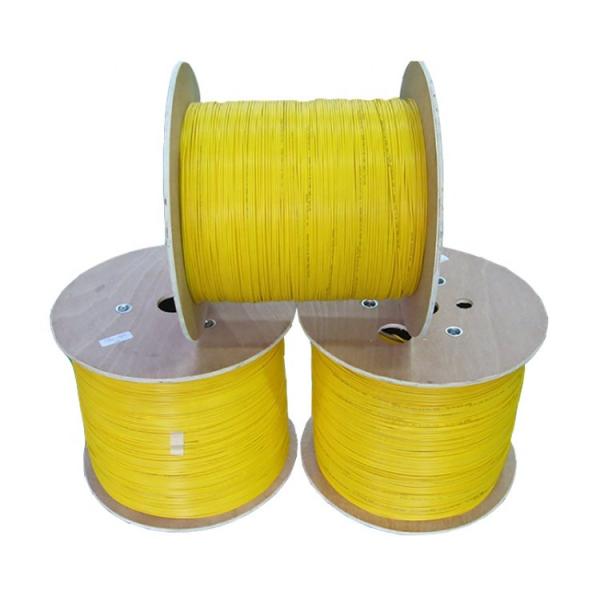

wooden drum
Fiber type :
OM3
Oem :
Available
Operating temperature :
-20~70°C
central strength member :
Aramid Yarn/Kevlar Yarn
Material: :
PVC/ LSZH/ PE
Packing :
Wooden drum
Type :
EFONA005 Ⅰ
Bending Radius :
10 times cable diameter
Length :
Custom Length
Service :
OEM ODM Accept
Fiber Count :
2/4/6/8/12/24/48/96
Strength Material :
Aramid yarn
Tight Buffer :
0.9mm
Feature :
indoor installation,floor installation
Stucture :
2.0/3.0mm
Messenger :
Steel Wire
Production Name :
tight buffered fiber cable
Allowable Tension :
200N-600N
Outdoor Or Indoor :
Indoor Fiber Optic Cable
Outer Jacket Material :
PVC or LSZH
Jacket :
LSZH Sheath
Color :
Light Yellow
Application :
indoor
Outer Jacket Materail :
LSZH
Cable Count :
1~2
Fire Retardant :
Yes
Operating Temperature :
-20°C to +70°C
Tplace Of Origin :
Chengdu, China
Jacket Color :
Blue or Customized
Core :
2~24 core
Description

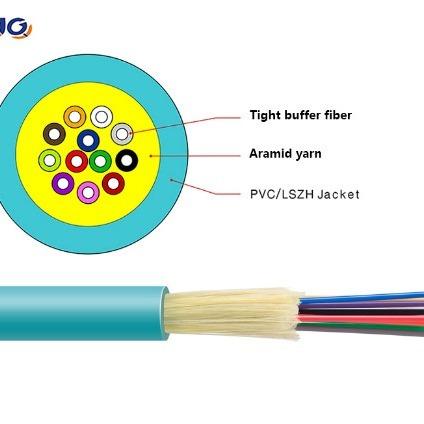

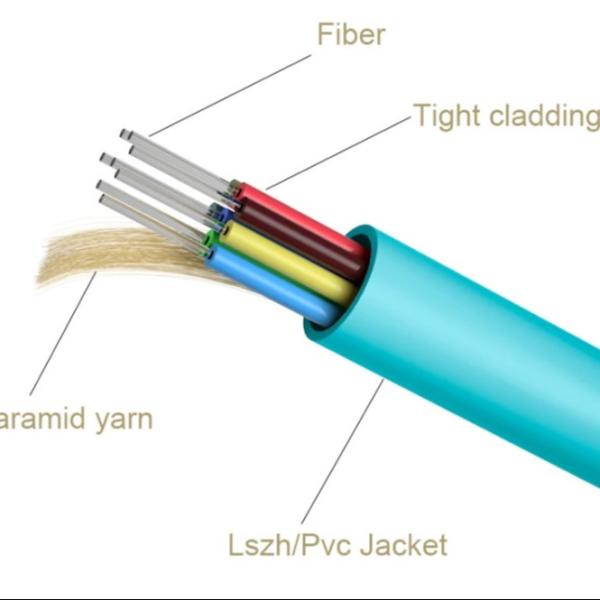

Indoor 12-Core Multimode Tight Buffered Fiber Optic Cable (GJFJH / GJFJV)

Our GJFJH/GJFJV indoor distribution fiber optic cable is designed for reliable high-speed data transmission in office buildings, data centers, and LAN networks. It is built with 12-core multimode 900μm or 600μm tight-buffered fibers, each reinforced with aramid yarn (Kevlar) for superior tensile strength.

The outer jacket is available in flame-retardant PVC or LSZH (Low Smoke, Zero Halogen) material, providing enhanced fire safety and low smoke emission, ideal for indoor installations where human safety is critical.

Key Features:

  • High-Quality Multimode Fibers: Stable performance, low attenuation, excellent bandwidth.

  • Kevlar Reinforced: Strong tensile strength, easy cable management and pulling.

  • Flame-Retardant Jacket: Compliant with indoor fire-safety standards, optional LSZH for safer environments.

  • Easy Installation: Flexible, lightweight design, suitable for short to medium-distance backbone or distribution use.

  • Applications: LAN, data centers, building backbone cabling, communication rooms.

This cable is manufactured with precise production equipment and strict quality control to ensure reliable optical performance and long service life.

Indoor Tight Buffer Fiber Optic Cable GJFJH GJFJV Kevlar Yarn 4 12 Core Distribution Cable

Features

  • Excellent mechanical strength and environmental reliability

  • Meets international flame-retardant and safety standards

  • Robust construction for long-term stability and performance

  • Flexible, easy to handle and splice, supports high-speed data transmission

Technical Data
No. of cable
8
12
24
36
48
Fiber Model
OM3
Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9
Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn
Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua
Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1.0
1.0
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235
Attenuation
850nm
dB/km
≤2.5
1300nm
≤0.7
Bandwidth
850nm
MHz.km
≥3500
1300nm
≥500
Allowable Tensile Strength
Short Term
N
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance
Short Term
N/100mm
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Company Profile
Guangzhou Jiqian Fiber Optical Cable Co., Ltd. is a modern high-tech enterprise located in the Mingying West 2nd Road Industrial Zone, Xintang Town, Guangzhou, Guangdong, China. We specialize in the research, development, manufacturing, and sales of high-quality fiber optic cables, offering a wide range of products from 2-core to 288-core configurations.

With advanced production lines, precision testing equipment, and a skilled technical team, we ensure every product meets international standards for optical performance and reliability. Our solutions are widely used in FTTH networks, data centers, telecommunication projects, and industrial communication systems.

Committed to innovation and customer satisfaction, we provide customized cable solutions, fast delivery, and professional technical support to clients worldwide.

FAQ

  1. Are you a manufacturer?
    Yes, we are a direct factory located in Guangzhou, China, and welcome factory visits.

  2. What is your minimum order quantity?
    Our MOQ is 1 km, and we support small trial orders for new projects.

  3. Can I get a sample?
    Yes, free samples are available, with shipping cost borne by the buyer.

  4. Which payment methods do you accept?
    We accept L/C, T/T, Western Union, and PayPal.

  5. What is your delivery time?
    Typically 3–7 working days, depending on order quantity.

  6. Do you offer customization or logo printing?
    Yes, OEM/ODM services are available. Contact us with your design or requirements.
