SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
SM-SX Patch Cord
Certification :
ISO 9001,ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou, China
MOQ :
50PCS
Payment Terms :
Western Union, T/T, L/C,Alipay
Supply Ability :
5000pcs per day
Delivery Time :
5-8 work days
Packaging Details :
100PCS In One Export Cartoon box
Material :
LSZH /PVC
Color :
Yellow/Black
Item :
optical fiber patch cord
Repeatability :
≤ 0.2 dB
Fiber count :
Simplex or Duplex
Fiber type :
SM or MM
Quality control :
100% test before shipping
Connector type :
SC/APC-SC/UPC
Length :
1m 2m 3m or Customized
Product name :
Fiber Optic Patch Cord
Polish :
PC/UPC/APC
Custom Length :
1/2/3/5/7/9/10m
Packing :
Polybag
Boots :
12 Colors Boots
Product Namee :
Fiber Optic Patch Cord
Number Of Conductors :
1/2/4 core
End Face :
Perfect Clean
Cable :
base station cable 5.0mm GYFJH
Cable Jacket Material :
LSZH Or PVC
Warranty :
5 years
Plug Material :
NSK, Japan
Testing :
100% Product Testing
Diameter :
3.0mm,2.0mm,0.9mm
Trunk Diameter :
3.0mm-17.3mm
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Features :
IP68 Waterproof
Crush Resistance :
≥100N/100mm
Outer Jacket :
PVC/LSZH/OFNP
Cable Cover Material :
LSZH, TPU
Fiber Type :
G.652D, G.657A1, G.657A2, etc.
Model No :
FC SC ST LC Patch Cord
Fiber Length :
Customized
Connector Style :
LC/APC-LC/UPC
Jacket Od :
2mm
Wavelength :
1310/1550nm
Outer Diameter :
7.0mm
Function :
Fiber Signal Transmission
Description

Product Description

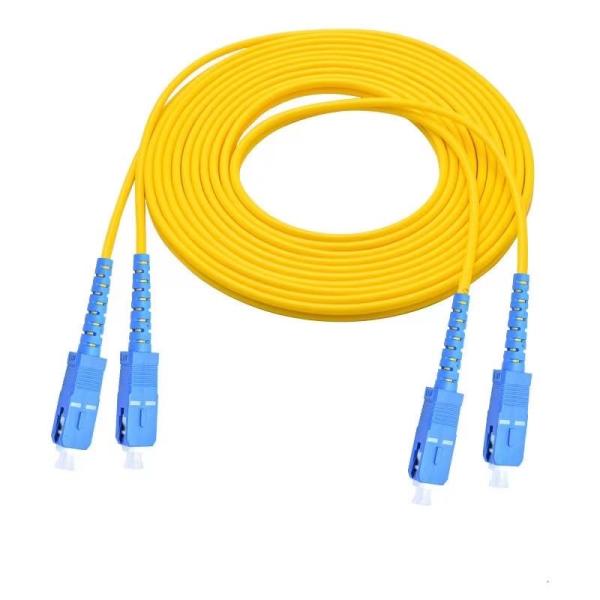

This SC/APC to SC/UPC fiber optic patch cord delivers reliable, high-speed connections for telecom and data networks. Made with 9/125µm single-mode simplex fiber and a 900µm tight buffer, it ensures stable transmission and long-term durability.

Each cord is factory-terminated and UPC polished, 100% tested for insertion loss and return loss, with traceable QC records. Compliant with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards, it guarantees excellent end-face geometry and superior optical performance.

The 3.0mm LSZH jacket provides flame retardance and low smoke emission, ideal for safe indoor use in data centers, LANs, FTTH, FTTX, and telecom rooms. Available in 1m, 2m, and 3m lengths for flexible installation.

Key Features:

  • Connector: SC/APC to SC/UPC

  • Fiber: 9/125µm Single-Mode Simplex

  • Jacket: LSZH, 3.0mm OD

  • Factory polished & terminated for stable performance

  • Fully compliant with TIA/EIA & Telcordia standards

  • 100% tested with traceable QC record

  • Lengths: 1m, 2m, 3m

  • Applications: FTTH, FTTX, data centers, LAN, CATV, telecom

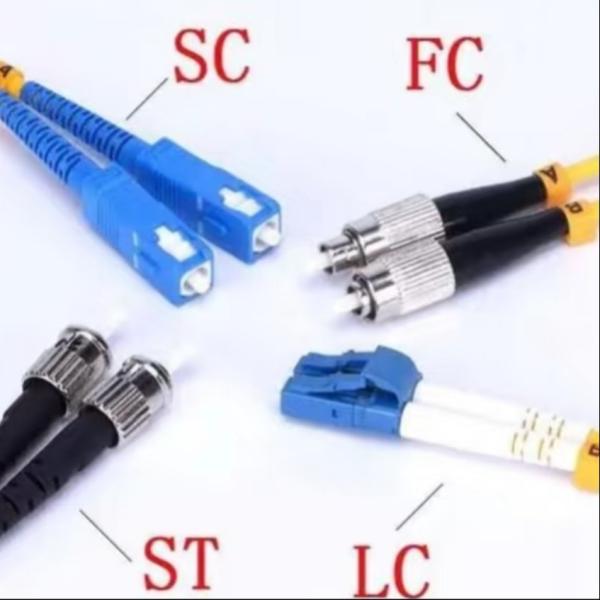

Connector Type

SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m

Feature

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability

Optical Characteristics

Parameter

PC

UPC

APC

Multi-mode

Insertion loss

≤0.3dB

≤0.3dB

≤0.3dB

≤0.3dB

Return loss

≥40dB

≥50dB

≥60dB

≥35dB

Exchange

≤0.2dB

Repeatability

≤0.2dB

Servicelife

>1000times

Tensile strength

>10kg

Temperature range

-40°C to +85°C

Technical Data

Type

Standard,Master

Style

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC

Fiber

Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3

Cable

Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH

Polishing Manner

UPC,SPC,APC(8°&6°)

Insertion Loss

≤0.1dB (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750

Return Loss

(Single mode)

UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750

Repeat ability

≤0.1dB

Operating temperature

-400 C° to 850 C°

Geometry Requirement

(Single mode)

Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1

Application

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Recommed Products

Packing & Delivery

Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC/APC to SC/UPC Fiber Patch Cord LSZH 3.0mm Jumper Cable 1m 2m 3m

Factory Pictures

FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord

Q1: What is the difference between SC/APC and SC/UPC connectors?
A1: SC/APC has an 8° angled end-face to reduce back reflection, ideal for CATV, FTTx, and high-precision networks. SC/UPC has a flat, ultra-polished surface, commonly used in data and telecom applications.

Q2: Is this patch cord single-mode or multimode?
A2: It is a single-mode (SM) patch cord with 9/125µm simplex fiber, suitable for long-distance, high-speed transmission.

Q3: What lengths are available?
A3: Standard lengths are 1m, 2m, and 3m. Custom lengths are available upon request.

Q4: What jacket material is used?
A4: 3.0mm LSZH (Low Smoke Zero Halogen) jacket, flame-retardant and safe for indoor installations.

Q5: Are these patch cords tested?
A5: Yes, all cords are 100% factory tested for insertion loss and return loss, with traceable QC data.

Q6: What standards does it comply with?
A6: Meets TIA/EIA-568-B.3 and Telcordia GR-326-CORE Issue 3 standards for consistent quality.

Q7: Where can this patch cord be used?
A7: Suitable for FTTH, FTTX, LAN, CATV, data centers, and telecom networks.

Q8: Can I customize connectors or lengths?
A8: Yes, we offer custom connector types (LC, FC, ST, etc.) and cable lengths on request.
