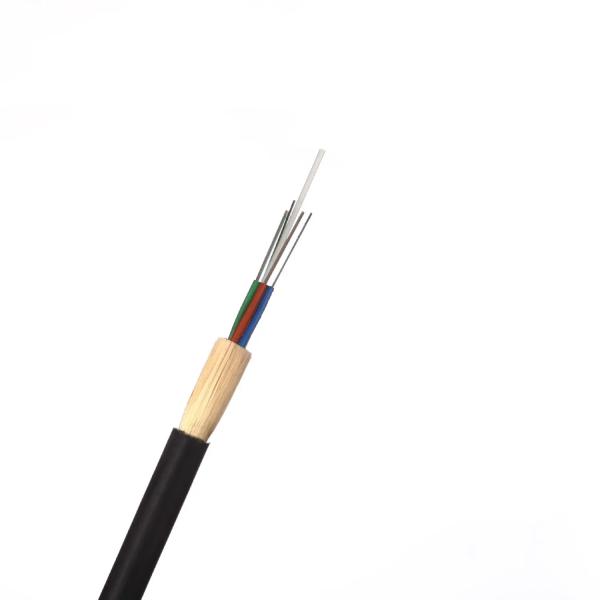

ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D
Specifications
Brand Name :
JQ or Customized
Model Number :
ADSS-24/48/72/96 hilos/cores
Certification :
ISO9001 CE ROHS Rohs FCC
Place of Origin :
Guangdong China
MOQ :
8km
Payment Terms :
T/T, Western Union,Alipay, MoneyGram, L/C
Supply Ability :
800KM per day
Delivery Time :
about 12 days
Packaging Details :
Wooden drum or Iron drum
Application :
outdoor aerial, FTTH FTTB FTTX Network
fiber counts :
4-288 cores
span :
50m /100m /200 m /300m /400m or Customized
OEM :
acceptable
strength number :
FRP, Kevlar Aramid Yarn High Strength
structure :
Stranded Loose Tube with filler (if needed)
jacket color :
Black or Customized
Fiber type :
G652D, OM1, G657, OM4, OM5
Description

12-Core Outdoor Single-Mode ADSS Fiber Optic Cable (G652D)

Key Advantages:

  • Lightweight & Compact: Reduces stress on poles, easy to install

  • Durable: Resistant to moisture, chemicals, and environmental stress

  • Versatile: Suitable for overhead and high-voltage areas

  • Long Lifespan: Up to 30 years under proper conditions

  • Efficient Installation: Self-supporting, no messenger wires needed

Applications:

  • Power and utility networks

  • Telecom and FTTx/FTTH projects

  • Railways and campus networks

  • Underbuilt and quick-deployment networks

Standards Compliance:

  • IEEE P1222

  • IEC 60794-1

Technical Info:

  • Fiber: Single-mode SM 9/125 µm, G.652D

  • Cores: 12

  • Environment: UV, rain, wind, extreme temperatures

  • Safe Installation: Fully dielectric, can be installed near live conductors

  • Use Cases: Smart grids, city fiber backbones, telecom expansions, outdoor campuses

Structure and Technical Specifications

1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

2. ADSS double jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---

Details picture shows

ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D

single jacket ADSS fiber cable

ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D

double jacket ADSS fiber optic cable

ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D

Packing:

ADSS Double Jacket 12–24 Core Outdoor Single-Mode Fiber Optic Cable G652D

FAQ

Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer with 10+ years of experience in fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou.

Q2: How is your product quality?
A2: Every fiber is tested before delivery. Free samples are available for quality verification.

Q3: Do you accept small orders?
A3: Yes, small orders are welcome.

Q4: What is the delivery time?
A4: Typically 3–7 working days, depending on order quantity.

Q5: Do you offer OEM services?
A5: Yes, we can print logos and accommodate custom designs.
