Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYTA 12core/24core/48core
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day
Packaging Details :
wooden drum
Fiber type :
G652D
Oem :
Available
Application :
Outdoor/Underground/Aerial/Indoor/FTTH (Fiber to the Home)/Fiber to the Building
Number of conductors :
24core 48core 72core
Structure :
Stranded loose tube
Operating temperature :
-40 ~ +60 C
central strength member :
Aluminium Wires
Fiber Count :
2/4/6/8/12/24/48/96
Manufacturer :
Yes
Jacket :
PVC\LSZH \LSOH \PE \HDPE
Connection Structure :
Stranded loose tube
Outer Jacket :
PE//HDPE/LSZH/AT
Sheath :
PE/HDPE/MDPE
Port :
Guangdong /Shenzhen
Instructure :
PSP enhancing moisture-proof
Outer Jacket Materail :
Aluminum clad steel
Fiber Type :
Single-mode/Multimode
Cable Diameter :
11±0.5mm
Cable Structure :
Loose Tube/Armored/Non-armored
Type :
Fiber Optic Cable
Armored Tape :
Aluminium tape
Description

GYTA Armoured 96-Core Outdoor Fiber Optic Cable

This high-density GYTA cable is designed for duct and aerial installation. It consists of loose tubes filled with water-blocking compound, wrapped longitudinally with PSP (corrugated steel tape) for excellent protection against crushing and moisture. A single PE sheath completes the robust structure. Ideal for metropolitan networks, bureau communications, and access networks where high fiber count and durability are required.

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Application:

1 ,Interbuilding voice or data communication backbone.

2 ,Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm

<3.0 dB/km

<3.3 dB/km

1300 nm

<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km

1550 nm

<0.22 dB/km

<0.23 dB/km

Bandwidth

850 nm

>500 MHz-km

>200 Mhz-km

1300 nm

>500 MHz-km

>500 Mhz-km

Numerical Aperture

0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength λcc

<1260 nm

<1450 nm

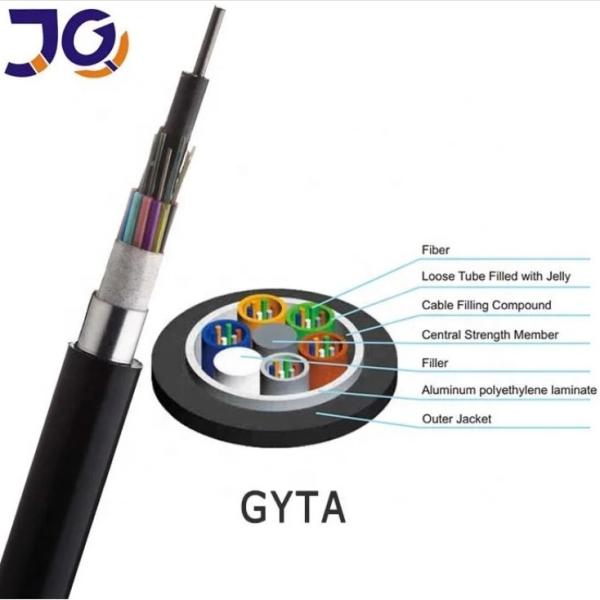

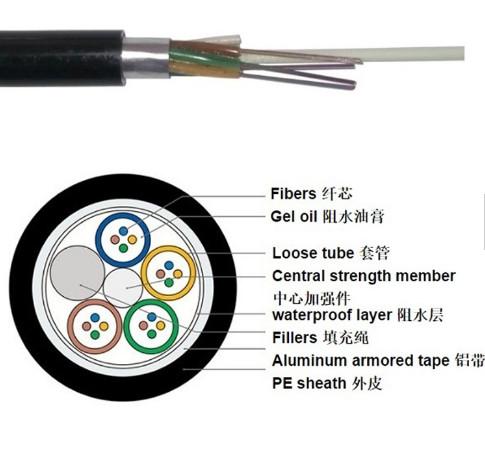

Structure and Technical Specifications

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber
Per Tube

Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~36

10.3

109

6

6

1500

600

1000

300

38~72

11.5

145

12

6

1500

600

1000

300

74~96

13.5

175

12

8

1500

600

1000

300

98~120

14.8

209

12

10

1700

600

1000

300

122~144

16.6

249

12

12

2000

600

1000

300

146~216

16.7

254

12

18(2 layers)

2000

600

1000

300

218~288

19.0

325

12

24(2 layers)

2500

600

1000

300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

Company Information.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a specialized manufacturer based in Guangzhou, China. The company supplies a full range of fiber optic products, including outdoor and indoor cables, FTTH drop cables, and fiber patch cords. All items comply with ISO9001, FCC, RoHS, and CE international standards. In addition, Jiqian offers OEM and customized cable design services to meet diverse customer requirements.

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Support OEM:

Print your logo on jacket : Customer logo+ GYTA 12 Core +G652D Cable .....2024 ....Meter

Such as :

Aluminum-Tape Armored GYTA Outdoor Fiber Optic Cable – Direct Burial, Wholesale from Factory

Delivery:


For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details


Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

FAQ

  1. Are you a manufacturer?
    Yes, we are a factory located in Guangzhou, China. You are welcome to visit us.

  2. What is the minimum order quantity (MOQ)?
    Our MOQ is 1KM. Trial orders for new projects are also accepted.

  3. Can I request a sample?
    Yes, we offer free samples. Customers only need to cover the courier cost.

  4. What payment methods do you accept?
    We accept L/C, T/T, Western Union, and PayPal.

  5. What is the delivery time?
    Normally 3–7 working days, depending on order quantity.

  6. Do you provide customized products and logo service?
    Yes, OEM and ODM services are available. Please feel free to contact us.
