G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYDTS/OPLC
Certification :
ISO9001 ROHS CE FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km Per day
Delivery Time :
3-5 dyas
Packaging Details :
1/2/3/4/5 km in one wooden drum
Jacket material :
PE, MDPE, LSZH, HDPE
Outer diameter :
9mm
Fiber count :
2-144Core
Structure :
Unit tube/Stranded twisted cable
Strength member :
steel wire/FRP Glass yarn
Product name :
Hybrid Optic Fiber Cable
Fiber type :
YOFC or as request
Application :
Aerial,Duct
Color :
black
Length :
2km or customized length
Fiber Type :
Single-mode/Multimode
Cable Color :
Black/Yellow/Orange/Green/Blue/Purple/Gray
Trademark :
JIANGHONG or OEM
Outer Jacket :
PE(HDPE/LDPE),PVC,LSZH
Cable Type :
Hybrid
Optical Fiber Material :
PMMA & copper power wires
Material Shape :
Round wire
Jacket Material :
PVC/LSZH/OFNR/OFNP
Sheath Material :
PVC
Fiber Count :
2-144 CORES
Standard :
YD/T 901 / IEC 60794-3-10
Return Loss :
≥50dB
Installation :
aerial/tube/duct
Description

G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires


GYDTW/GYDTS

Hybrid Cable 2–24 Core GYXTW with Two Copper Power Wires

Composite fiber optic cables combine multiple components—such as optical fibers and metal conductors—within a single bundle. This design allows multiple transmission paths in one cable, reducing installation costs and lead time. The 250μm fiber is placed in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped with a layer of PSP, with water-blocking material between the PSP and the loose tube to ensure compactness and watertight performance. Two parallel steel wires run along both sides of the steel tape for added strength. The cable is completed with a durable polyethylene (PE) jacket.

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

Features

  • Excellent mechanical and temperature performance

  • High-strength loose tube with hydrolysis resistance

  • Special filling compound for optimal fiber protection

  • Compact, lightweight, flexible design with strong bend resistance

  • Low dispersion and attenuation; precise fiber excess length and controlled stranding ensure superior mechanical and environmental performance

  • Steel wire and corrugated steel tape armoring provide moisture resistance and crush protection

Optical Fiber Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D

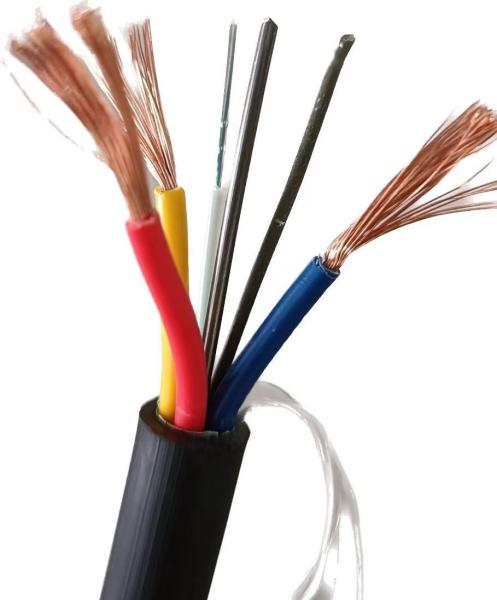

Product Image

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.

Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

FAQ

  1. Are you a trading company or manufacturer?
    We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit us!

  2. What about product quality?
    Every fiber is tested before delivery to ensure quality. After price confirmation, you can request free samples to check our products.

  3. Do you accept small orders?
    Yes, small orders are welcome. We support new customer projects because business often starts small.

  4. What is the delivery time?
    Typically 3–7 working days, depending on order quantity. We will arrange your goods as soon as possible after payment.

  5. Do you provide OEM services?
    Yes, OEM is available. We can print your logo on the products, and we are open to any customization ideas you have.
