Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Specifications
Brand Name :
JQ/OEM/Customize
Model Number :
GYFTY
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou, China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
2-288 cores
Fiber type :
Single mode/Multi mode
Jacket :
PE,MDPE,LSZH,PVC,HDPE
Color :
Customized
Product name :
Outdoor fiber optic cable
Length :
2km or customized length
Structure :
Strand Loose tube
Installation :
Aerial & Duct
Number of conductors :
≥ 10
Features :
Light weight & Reduced-Diameter
Fiber Grade :
G.652D, G.657A1, G.657A2, G.657B3
Number Of Cores :
1-12 cores
Diameter :
9.3mm
Material Of Jacket :
Black Polyethylene(PE)
Operation Temp :
-20℃~ +70℃
Temperature :
-20 to 70°C
Outer Jacket Material :
Shockproof material
Fibers :
48core
Armored :
Double Armored
Fiber Counts :
4-144cores
Fiber Count :
2/4/6/8/12/24/48/72/96/144
Strength Member :
Central Steel Wire
Wavelength :
1310nm/1550nm
Description

Single Mode/Multi Mode GYFTY/GYTY Outdoor 144 Core Fiber Optic Cable

Product Description

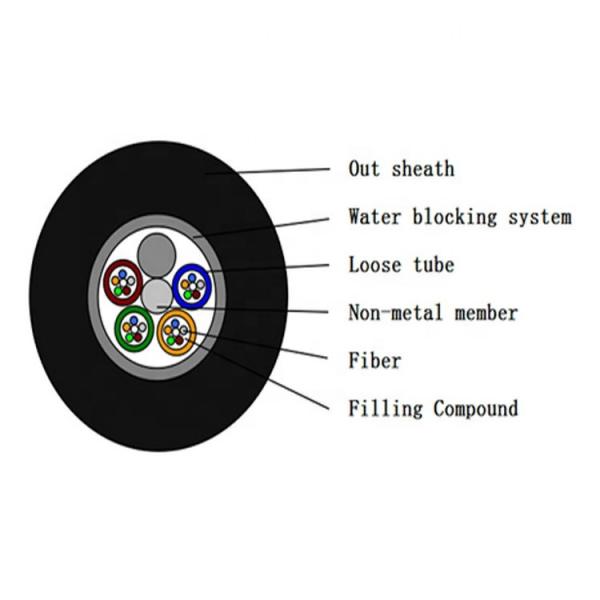

The 250µm fibers are housed in loose tubes made of high-strength plastic, filled with a water-resistant compound. A central Fiber Reinforced Plastic (FRP) rod serves as the non-metallic strength member. The tubes and fillers are stranded around the core to form a compact, circular structure. This is wrapped with a thin polyethylene (PE) inner sheath and filled with jelly to block moisture. A water-blocking layer is applied around the core for extra protection, followed by a corrugated steel tape armor and a durable PE outer sheath.

Features

  1. Compact diameter, lightweight, and flexible design

  2. Reliable water-blocking structure

  3. FRP central strength member for durability

  4. Strong resistance to electromagnetic interference

  5. Jelly-filled loose tubes with PP fillers

  6. Water-blocking tape with robust PE sheath

Applications


GYFTY fiber optic cable is designed for use in high-voltage environments, power transmission systems, and areas prone to lightning or strong electromagnetic interference. With its non-metallic strength member, it offers excellent performance without the need for additional support. This makes GYFTY cables a preferred choice for installations in regions with challenging electrical conditions.

Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable
Outdoor 144 Core Fiber Optic Cable GYFTY GYTY Multi Mode Loose Tube Telecom Cable

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHzkm

2200MHz:km

@1300nm

21000MHz-km

2600MHzkm

NumericalAperture

0.200+0.015NA

0.275+0.015NA

CableCut-

offWavelengthλcc

≤1260nm

Cable Parameters

Items Specifications
Fiber Count 144 fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP or steel wire
Outer Jacket Dimension 14.7mm±0.2mm
Material PE
Color Black

FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, and you’re welcome to visit us.

2. How do you ensure product quality?
Every fiber is tested before delivery. Free samples can be provided for quality evaluation after price confirmation.

3. Do you accept small orders?
Yes, small orders are supported. We understand that business often starts with small quantities and welcome new projects.

4. What is your delivery time?
Typically 3–7 working days, depending on the order size. We will arrange shipment as soon as payment is confirmed.

5. Do you offer OEM service?
Yes, OEM is available. We can print your logo on the product and customize based on your ideas.
