Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks
Specifications
Brand Name :
JQ /Customized/OEM/ODM/Jiqian
Model Number :
ADSS-24/48/72/96 hilos/cores
Certification :
ISO9001 CE ROHS Rohs FCC
Place of Origin :
Guangdong China
MOQ :
8km
Payment Terms :
T/T, Western Union,Alipay, MoneyGram, L/C
Supply Ability :
800KM per day
Delivery Time :
about 12 days
Packaging Details :
Wooden drum or Iron drum
Application :
outdoor aerial, FTTH FTTB FTTX Network
fiber counts :
4-288 cores
span :
50m /100m /200 m /300m /400m or Customized
fiber per tube :
4/6/8/12/F
OEM :
acceptable
strength number :
FRP, Kevlar Aramid Yarn
structure :
Stranded Loose Tube
jacket color :
Black or Customized
Operating temperature :
-40℃ to +80℃
Fiber type :
G652D, OM1, G657, OM4, OM5
Jacket material :
PE, MDPE, LSZH, HDPE
Outsheath :
PE / LSZH / OFNP
Rango De Temperatura :
-40+70°C
Strength Member :
Two steel wire
Temperature :
-20 to +70
Fiber Brand :
Corning, OFS, YOFC, Fiberhome
Max Tensile Strength :
500N
Laying Mode :
Duct/Aerial
Model :
GYXTC8Y
Water Blocking Tape :
Yes
Frp :
0.7/0.8/1.0mm/2.2mm
Laying Ways :
Pipeline/Overhead/Direct buried/Duct
Drum Length :
3KM or Customized
Cable Length :
1000m
Out Color :
Black
Service :
OEM
Description

Product Title
12 Core Outdoor ADSS Fiber Optic Cable | Single Mode G652D 9/125 SM

Product Description
ADSS (All-Dielectric Self-Supporting) fiber optic cable is a non-metallic outdoor cable designed for aerial installation on power and telecom lines. Built with aramid yarn strength elements and loose tube construction, it offers excellent mechanical performance, long service life, and easy installation without the need for a messenger wire.

Key Advantages

  • Non-Metallic & Safe: Fully dielectric structure ensures safe use near power lines.

  • Lightweight & Compact: Reduces load on poles and towers for easier handling.

  • Durable Design: Resistant to moisture, chemicals, and harsh weather.

  • Reliable Transmission: Stable optical performance for long-distance communication.

  • Cost-Effective: Single-pass installation with up to 30 years of service life.

Applications

  • Power utilities and telecom operators for backbone and distribution networks.

  • Railways and private network providers.

  • Aerial installations on distribution and transmission lines, even under live-line conditions.

  • FTTX projects including FTTH (Fiber to the Home).

  • Underbuild and network expansion with minimal service interruption.

Standards
Complies with IEEE P1222 and IEC 60794-1 international standards.

Structure and Technical Specifications

1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

2. ADSS double jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228

Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.

Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---

Details picture shows

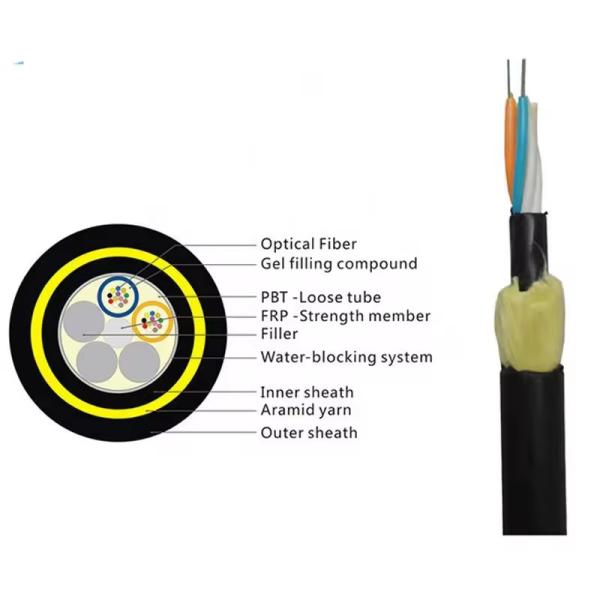

Double Jacket ADSS Fiber Optic Cable

Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks

Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks

Packing:

Outdoor Aerial ADSS Fiber Optic Cable Double Jacket Non-Metal HDPE 24–96 Core for Telecom Networks

FAQ

Are you a manufacturer or trading company?
We are a manufacturer with 10+ years of experience in fiber optic cables, drop cables, patch cords, and related products. Our factory is located in Guangzhou, and we welcome your visit.

How do you guarantee quality?
Each product is tested before shipping. Free samples can be provided after price confirmation for quality evaluation.

Can I place a small order?
Yes. We accept small and trial orders to support new projects.

What is your delivery time?
Usually 3–7 business days, depending on the order size. Shipment is arranged quickly after payment.

Do you provide OEM service?
Yes. We offer OEM customization, including logo printing and tailored product solutions.
