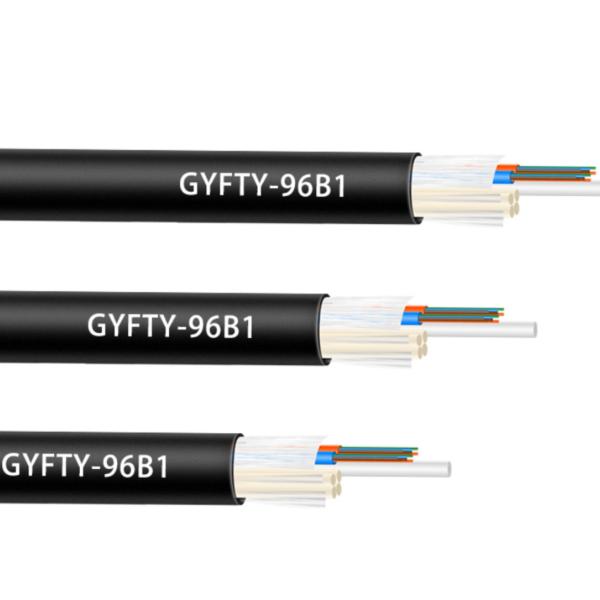

China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTY
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou, China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
4-288 Core
Fiber type :
single mode G652D
Jacket :
PE,MDPE,HDPE
Color :
Black
Product name :
Outdoor SZ fiber optic cable
Length :
2km/Wooden drum
Structure :
Stranded Loose tube
Installation :
Aerial Duct
Description

Product Description

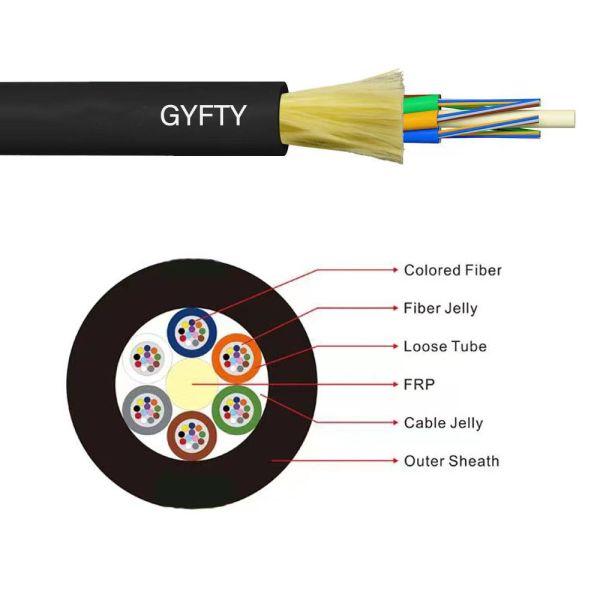

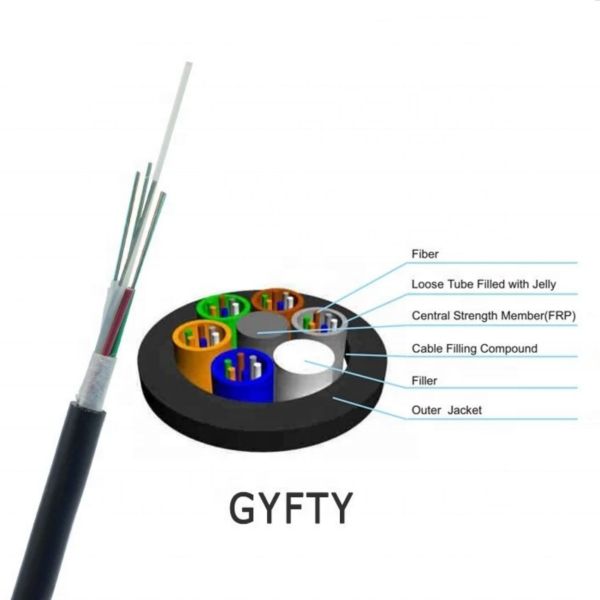

GYFTY fiber optic cable uses 250µm fibers housed in high-modulus loose tubes filled with water-blocking gel. A central FRP rod provides non-metallic strength, with tubes and fillers stranded into a compact dielectric core. The core is protected with jelly and wrapped with water-blocking materials to ensure long-term moisture resistance. A PE outer jacket completes the lightweight, durable, waterproof structure.

Key Features

  • Lightweight design with small diameter for easy installation

  • Strong mechanical and temperature performance

  • Low attenuation and stable transmission

  • Gel-filled loose tubes for enhanced fiber protection

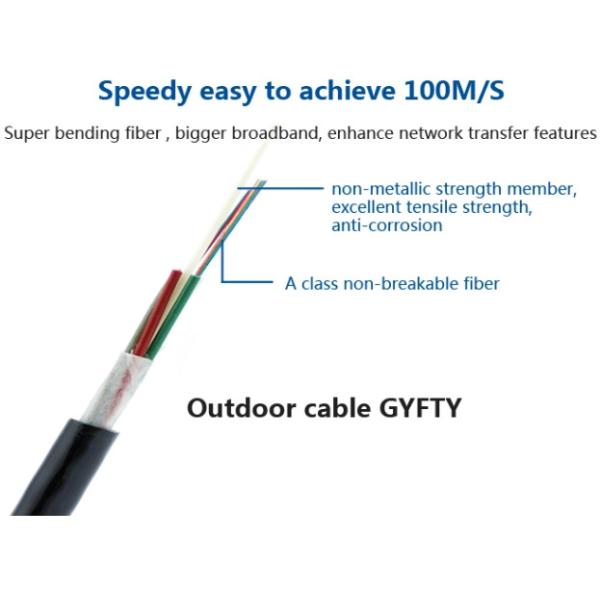

  • Non-metal FRP strength member for excellent anti-electromagnetic interference

  • Effective water-blocking system for reliable outdoor waterproof performance

  • Durable PE jacket suitable for harsh environments

Applications

  • Aerial and duct installation

  • Outdoor distribution networks

  • Access network and local communication

  • Areas with electromagnetic interference

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHzkm

2200MHz:km

@1300nm

21000MHz-km

2600MHzkm

NumericalAperture

0.200+0.015NA

0.275+0.015NA

CableCut-

offWavelengthλcc

≤1260nm

Cable Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 8.8±0.2 62
6 1+5 6 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
8 1+5 8 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0±0.2 65
24 1+5 6 1.9±0.3 1.4/1.4 1.6 9.2±0.2 68
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6 80
96 1+8 12 2.2±0.1 2.2/3.5 1.6 12.0 103
144 1+12 12 2.2±0.1 2.2/6.4 1.8 15.0 180

China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket

FAQ

1. Are you a trading company or manufacturer?
We are a direct manufacturer with 10+ years of experience in fiber optic cable production, including outdoor cables, drop cables, and patch cords. Our factory is located in Guangzhou. Welcome to visit us.

2. How is your product quality?
All fibers are tested before shipment. After confirming the price, free samples can be offered for quality checking.

3. Do you accept small orders?
Yes. Small orders are supported, especially for new projects or trial orders.

4. What is your delivery time?
Normally 3–7 working days depending on the order quantity. We will arrange shipment as soon as payment is received.

5. Do you offer OEM service?
Yes. OEM/ODM is available, including logo printing and customized designs based on your requirements.
