48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
Specifications
Brand Name :
jiqian
Model Number :
double jacket ADSS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1km
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per Month
Delivery Time :
2-4days
Packaging Details :
wooden drum/customized
Fiber type :
G652D
Application :
Aerial/duct
Number of conductors :
48 core 96 core 144core
Structure :
Stranded loose tube
Operating temperature :
-40 ~ +60 C
central strength member :
FRP
Span :
80m 100m 200m 300m
Description

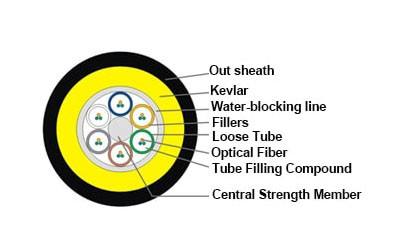

The fibers are positioned into a loose tube made of high modulus plastics. Filled with a water-blocking filling compound, the tube is stranded around FRP as a non-metallic central strength member into compact and circular cable core. Then covered with thin PE (polyethylene) inner sheath and a layer of aramid yarn, the cable is completed with a PE outer sheath. ADSS cables are ideal for outside plant aerial applications, the lightweight cable and all-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

48 Core 100m Span Non Metallic Adss Optical Cable For Construction

Advantage:

ADSS (All Dielectric Self-Supporting) Cable is suspended from poles or towers in telecommunication and power outside plant application without shutting off the power.

Feature :

1.The lifespan is over 30 years
2.Large span with the largest span of over 1000m
3.Reliable performance of moistureproof and waterproof
4.Central strength member FRP gives high tensile strength
5.PE or AT sheath ensures safety of cable in high voltage environment
6.All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.

Application:

1)Railways, power and telecommunication pole routes
2)Can be used in areas suffered from frequent lightning
3)Ideal for transmission lines with high electrical field strength
4)Suitable for installation on poles and on the power distribution network
5)Aerial self-supporting applications at short, medium and long span distances.

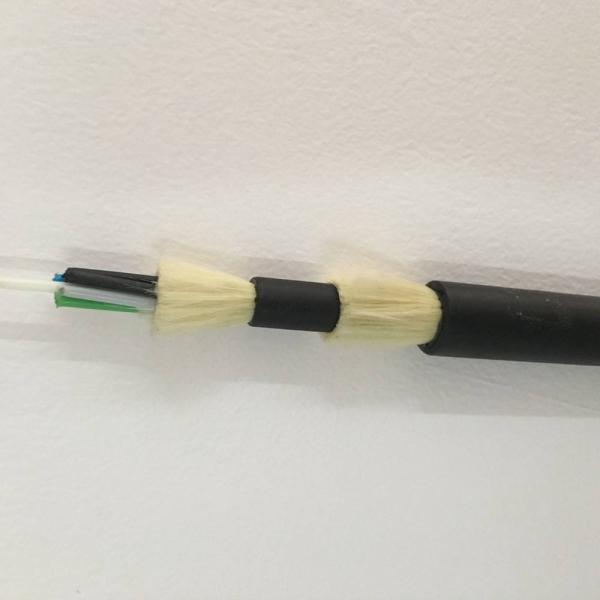

Detailed Images
48 Core 100m Span Non Metallic Adss Optical Cable For Construction
48 Core 100m Span Non Metallic Adss Optical Cable For Construction

our factory :

48 Core 100m Span Non Metallic Adss Optical Cable For Construction

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.

7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc

Thank you very much for viewing this page, and wish you a nice day!
Please click the button below to view our homepage.

48 Core 100m Span Non Metallic Adss Optical Cable For Construction
