G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
Specifications
Brand Name :
Jiqian
Model Number :
ADSS
Certification :
CE/ISO9001
Place of Origin :
Guangdong,China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 days, it depends on your quantity
Packaging Details :
wooden drum
Fiber count :
2-144Cores
Jacket Material :
PE
Jacket color :
Black
Lift time :
25 years
Factory :
Yes
Fiber Brand :
YOFC
Fiber Type :
G652d,G657d
Length :
1km/2km/3km/4km
Strength Member :
FRP
Description

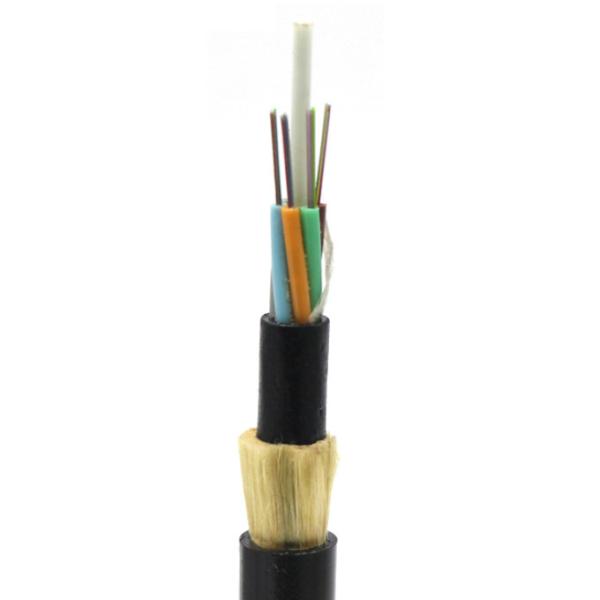

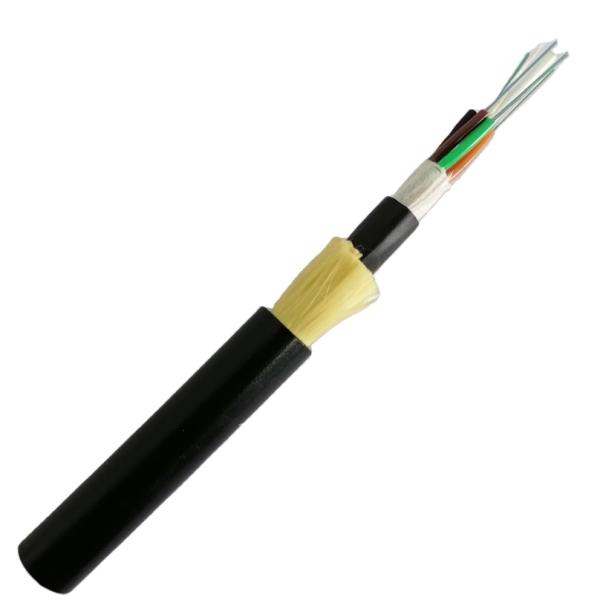

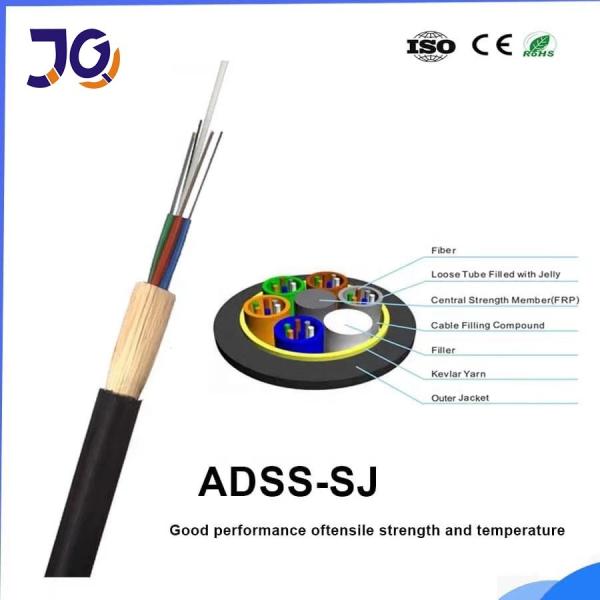

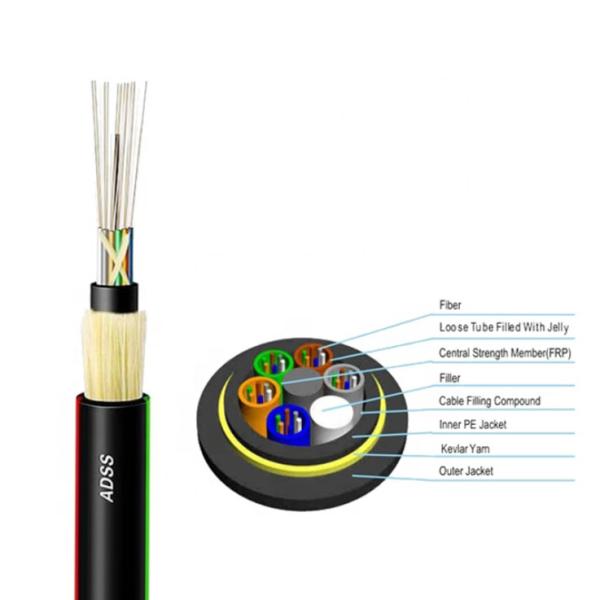

Outdoor Double Sheath 8 12 24 48 96 Core 300m Span ADSS Fiber Optic Cable

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Double Layer Aerial ADSS Cable is used for communication cable of overhead high-voltage electricity transmission system,

it also can be used as communication cable at the areas where lighting is frequent or distance is big.

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Feature:
--Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

Note: Other parameters meet standard ITU-T G.652

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Packaging Details

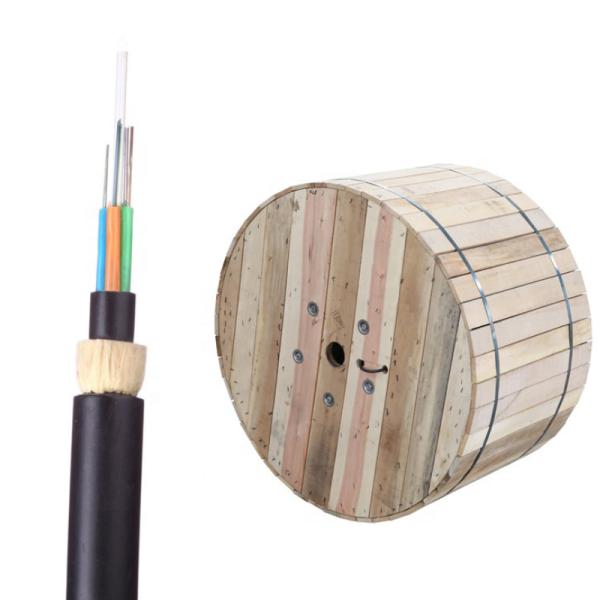

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
Factory Show
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
