48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
Specifications
Brand Name :
Jiqian
Model Number :
GYTS
Certification :
CE/ISO9001
Place of Origin :
Guangdong,China
MOQ :
1KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 days, it depends on your quantity
Packaging Details :
wooden drum
Fiber count :
2-288Cores
Jacket :
PE
Color :
Black
Warranty :
25 years
OEM :
Yes
Fiber Brand :
YOFC
Armoured :
Yes
Length :
1km/2km/3km/4km
Description

12 24 48 Core Loose Tube Stranded Cable Armoured Optical Fiber Communication Cable GYTS Outdoor Fiber Cable

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

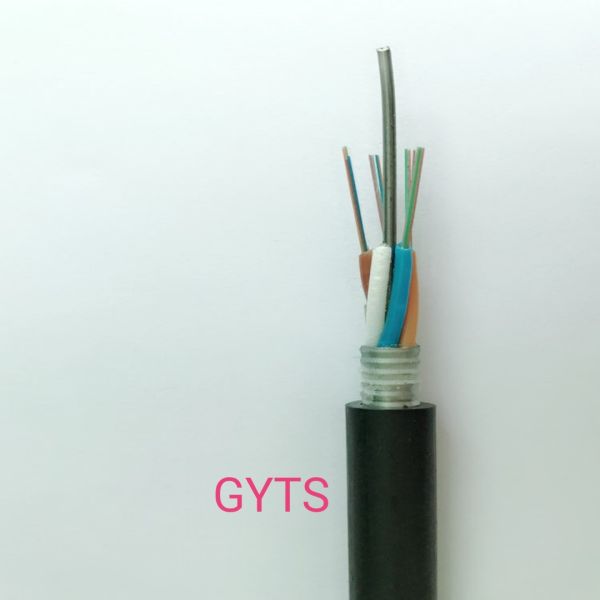

Construction:

1. Fiber

2. Jelly filling the tube

3. PBT loose tube

4. Jelly filling the cable

5. Corrugated armored

6. Steel wire central Strength

7. Water block tape

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Applications:

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Dimensions of Cable Constructions

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.4 9.0±0.3 80
6 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
8 1+5 8 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
12 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 80
24 1+5 6 1.9±0.1 1.4/1.4 1.4 9.0±0.3 85
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 100
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 105
60 1+5 12 2.2±0.1 1.6/1.6 1.6 9.7±0.3 110
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6±0.3 122
96 1+8 12 2.2±0.1 1.6/3.5 1.6 12.0±0.3 160
144 1+12 12 2.2±0.1 2.0/6.4 1.8 15.6±0.3 240
216 1+6+12 12 2.2±0.1 2.2/2.2 1.8 16.0±0.3 270
288 1+9+15 12 2.2±0.1 2.2/4.3 2.0 18.2±0.3 282

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Company Picture
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
