Specifications
Brand Name :
Jiqian/OEM
Model Number :
mgtsv
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000 kilometers per month
Delivery Time :
2-4days
Packaging Details :
Wooden Drum
Out color :
blue\Customized
Armoured :
steel tape
Jacket :
PVC\LSZH \LSOH \PE \HDPE
Strength member :
Steel Wire
Number of Conductors :
≥ 10
Fiber Type :
G652D
Fiber type :
single mode
Application :
Outdoor Overhead
Description

MGTSV Cable Fibra Optica Singlemode Fiber Optic Cable 24 core outdoor fiber optic cable

Cable
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight Kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100m
Bending Radius Static/Dynamic mm
MGTSV-2～6
2～60
5
12.2
156
1000/2000
500/1500
15D/30D
MGTSV-62～72
62～72
6
13.8
210
1750/3500
500/1500
10D/20D
MGTSV-74～96
74～96
8
15.1
242

1750/3500
500/1500
10D/20D
MGTSV-98～120
98～120
10
17.2
280

1750/3500
500/1500
10D/20D
MGTSV-122～144
122～144
12
19
320

1750/3500
500/1500
10D/20D
MGTSV-146～216
146～216
18
19
320

1750/3500
500/1500
10D/20D

Characteristics

1) Good mechanical and temperature performance
2) High strength loose tube that is hydrolysis resistant
3) Special tube filling compound ensure a critical protection of fiber
4) Special sheath material ensures excellent flame-retardant performance
5) Crush resisitance and flexibility
6) PSP enhancing moisture-proof
8) Small diameter, light weight and friendly installation
Storage/Operating Temperature: -40°C to + 70°C

Description:

MGTSV fiber optic cable, the fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PE outer sheath.

Quality stranded Loose Tube Armored Double Jacket Mining Optical Fibre Cable MGTSV

Quality stranded Loose Tube Armored Double Jacket Mining Optical Fibre Cable MGTSV

Packing

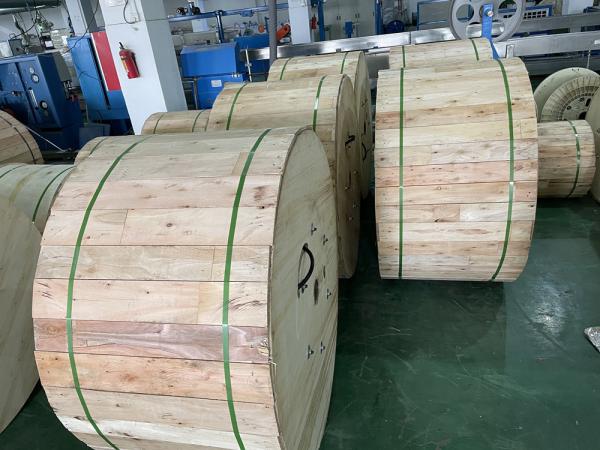

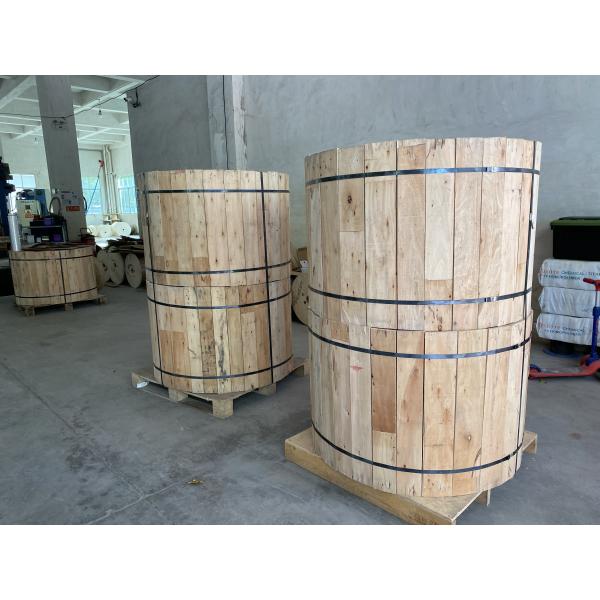

1/2/3/4km or customized length export wooden drum

Quality stranded Loose Tube Armored Double Jacket Mining Optical Fibre Cable MGTSV

Application

Duct/Aerial/Direct Buried

Quality stranded Loose Tube Armored Double Jacket Mining Optical Fibre Cable MGTSV

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable.Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.Whatis your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
