Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span
Specifications
Brand Name :
Jiqian
Model Number :
Mini ADSS/ASU80
Certification :
FCC/ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500 per month
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
Plywood drum
Description

Uni-loose Tube All Dielectric Outdoor 8 Core 4 Core Mini ADSS 50M Span Fiber Optical Cable

Cable Parameters:

Item Parameters
Fiber Count 12
Water blocking material Water block yarn
Span 100m
Colored coated fiber Dimension 250µm±15µm
Color Blue,Yellow,Green,Red,Violet,White ,Blown, Pink, Black, Gray, Orange, Aqua
Loose tube Diameter 2.3mm±0.1mm
Material PBT
Color blue

Filling compound in loose tube

 Gel
Strength Member FRP 2.0mm
Armoured Non-armoured

Outer sheath

Cable diameter

 Material PE
8.0mm

Fiber Optic G652D:

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span

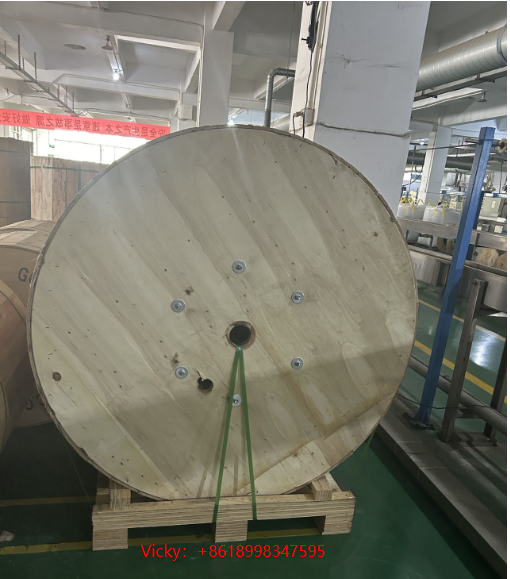

Packing&Delivery:

2km/3km/4km per wooden drum or customized

Port:Shenzhen/Guangzhou

Lead time:

Quantity(km) 100-200 >200
Est time(day) 3-5 days negotiable

Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span

Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span

Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span

Uni - Loose Tube All Dielectric Outdoor Fiber Optic Cable 8 Core 4 Core Mini ADSS 50M Span

FAQ:

Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you provide OEM or ODM

A: Yes

Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
