ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable
ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable
ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable
ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable
Specifications
Brand Name :
Jiqian
Model Number :
GYTC8A
Certification :
ISO9001
Place of Origin :
Guangzhou,China
Delivery Time :
3-5 days
Packaging Details :
1km
Model Numer :
GYTC8A
OEM :
Available
Sheath Material :
PE
Number of fiber :
2-144
Manufacturer :
Yes
Strength member :
Phosphated Steel Wire
Description

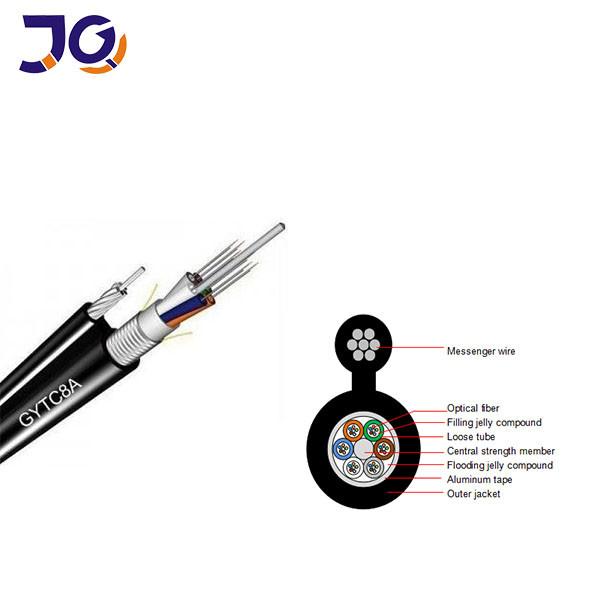

GYTC8A Self-Supporting Stranded Loose Tube Cable Figure 8 Optical Fiber Cable

Features
• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

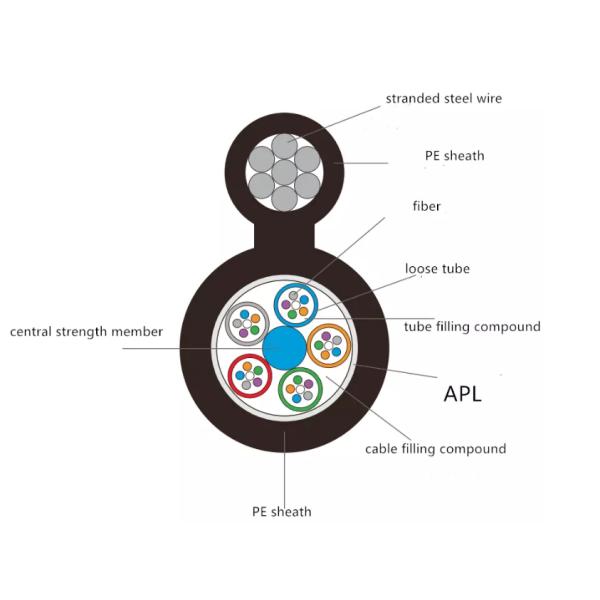

• Use the following measures to ensure the waterproof performance of the optical cable:

-Single steel wire center reinforcement core

-Loose tube filled with special waterproof compound

-Complete cable core filling

-Plastic coated aluminum tape (APL) moisture barrier

Structural parameters:

Optical cable model

(Increments of 2 fibers)

Number of fibers

Number of loose tube

Filling rope number

Reference cable weight
(kg/km)

Tensile strength long/short term(N/100mm)

Crush resistance long/short term

(N/100mm)

Bending radius static/dynamic

(mm)
GYTC8A-2~6 2~6 1 4 158 According to the diameter of the suspension wire 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 158
GYTC8A-14~18 14~18 3 2 158
GYTC8A-20~24 20~24 4 1 158
GYTC8A-26~30 26~30 5 0 158
GYTC8A-32~36 32~36 6 0 167
GYTC8A-38~48 38~48 4 1 172
GYTC8A-50~60 50~60 5 0 172

Storage and use temperature: -40℃ to +70℃.

Optical characteristic

Type

attenuation

(+20℃)

bandwidth

Numerical aperture

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---
Application: overhead
ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable
FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
