1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable
1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable
1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable
1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GJYXCH
Certification :
ISO9001
Place of Origin :
Guangzhou,China
MOQ :
1KM
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100KM Per day
Delivery Time :
5-8 work days
Packaging Details :
wooden package or cartoon box
Fiber count :
1/2/4 Core
Jacket Color :
Black,White,as request
Jacket Material :
LSZH/PVC
Messenger wire :
1.0mm Steel Wire
Application :
FTTH FTTB FTTX Network
Attenuation(max) :
≤0.36dB /KM(1310nm)
Strength member :
FRP/KFRP/Steel wire
Fiber :
YOFC,or as request
Weight :
20kgs/km
Length :
1km or 2km
Description

Outdoor Self-Supporting G657A Or G652D 1 2 4 Core Ftth Fiber Drop Cable

Features

1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, (2.0±0.2)x(5.0±0.2)mm
6, Compliant with Telcordia GR-326-CORE specification

1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable

1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable

Product detail

1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable

Technical parameters

Product
Model		 Fiber
Count
(core)		 CableDiameter(mm) CableWeight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)		 Crush
Resistance
Long/Short
Term(N)		 Bending
Radius
Static/
Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30

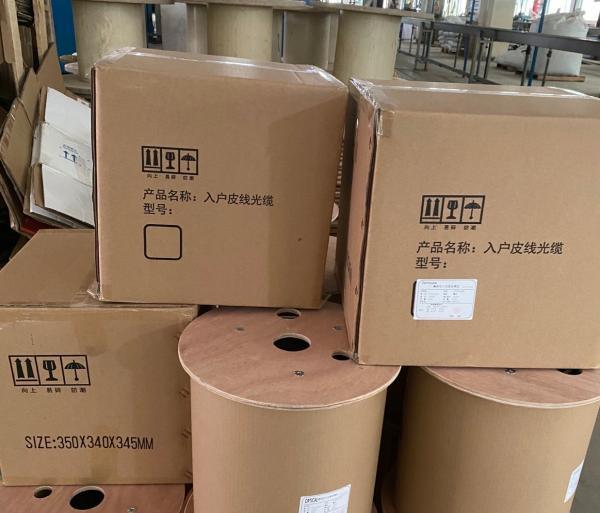

Package

Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable

1.0mm Steel Wire G657A G652D 1 2 4 Core Drop Cable

FAQ

1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
