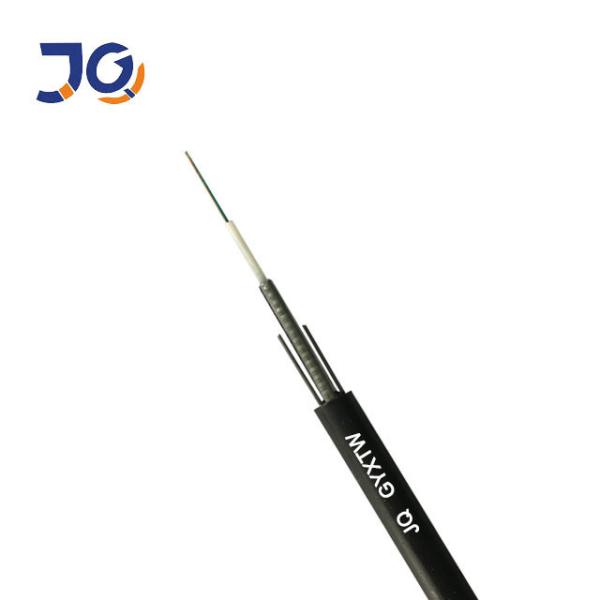

GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
Specifications
Brand Name :
jiqian
Model Number :
GYXTW
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day
Packaging Details :
wooden drum
Fiber type :
G657A1/A2/G652D/G657A1/G657A2
Oem :
Available
Application :
Aerial
Number of conductors :
≥ 10
Structure :
Loose tube,Unitube
Operating temperature :
-40 ~ +60 C
Description

Outdoor Loose Tube Amored With Steel Wires GYXTW 12 Core Fiber Optic Cable G652D

Name
JIQIAN GYXTW Cable
Fiber
2-24 Core
Material
Fiber---G652D
Sheath---PE or customized
Installation way
Aerial
Package
Wooden accessory
Delivery
Within 20 days
By sea, careful ship to your address!

GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires

GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires

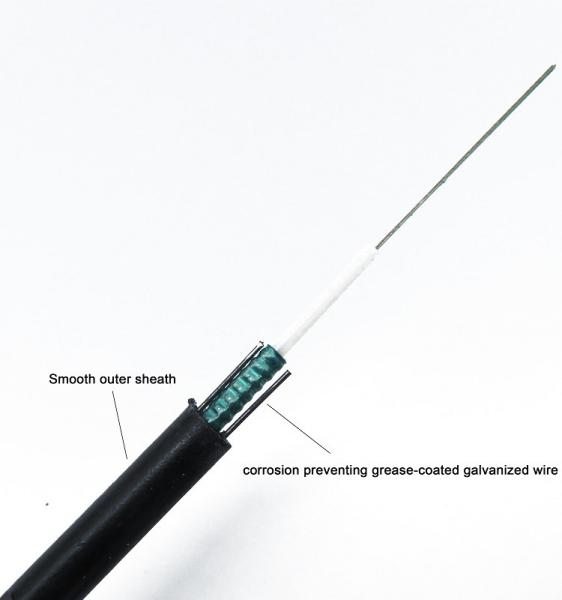

GYTXW 250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.

Feature:

Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• Good lateral pressure resistance and softness

• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

• The two parallel steel wires provides enough tensile strength

• Small diameter, light weight, easy for laying

GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires

Applications

• Outdoor Duct, overhead

Optical Techology:

Cable

Count

Out

sheath

Diameter

 Weight

Minimum

allowable

TensileStrength

(N)

Minimum

allowable

Crush Load

(N/100nm)

Minimum

Bending

Radius(MM)

Storage

Temperature
(MM) (kg) Short term Long term Short term Long term Short term Long term (°C)
12 8.3 78 1500 600 1000 300 20D 10D -40+60

LCD Delivery <10000m <20000m <50000m >100000m
25days 22days 18days 10days

GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel WiresGYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
GYXTW 12 Core Fiber Optic Cable G652D Loose Tube Armored With Steel Wires
