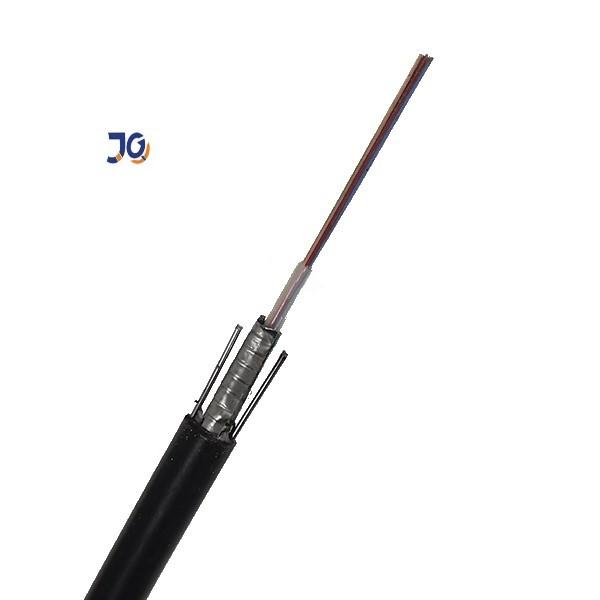

4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable
Specifications
Brand Name :
JQ
Model Number :
GYXTW
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
Central Loose Tube
Number of Conductors :
≥ 10
Fiber type :
G652D Single mode or as your request
Length :
as required
Color :
Customized
Loose tube material :
PBT
Outer Sheath :
PE or as your request
Package :
Wooden Drum/Customized
Application :
Overhead, duct
Oem :
Available
Description

Product Description:

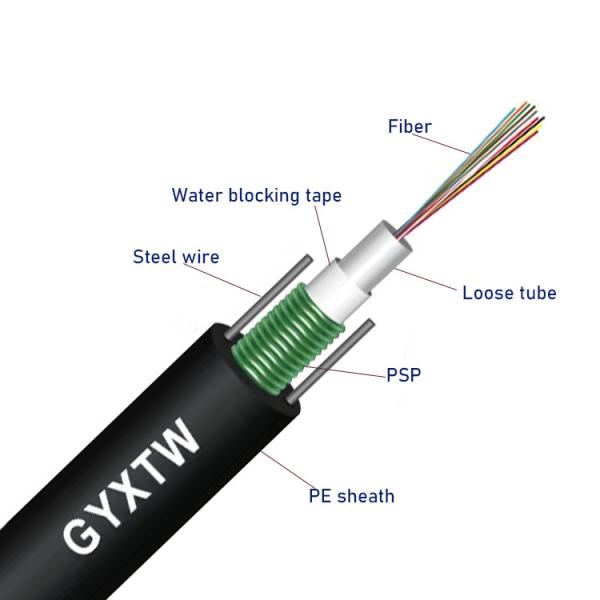

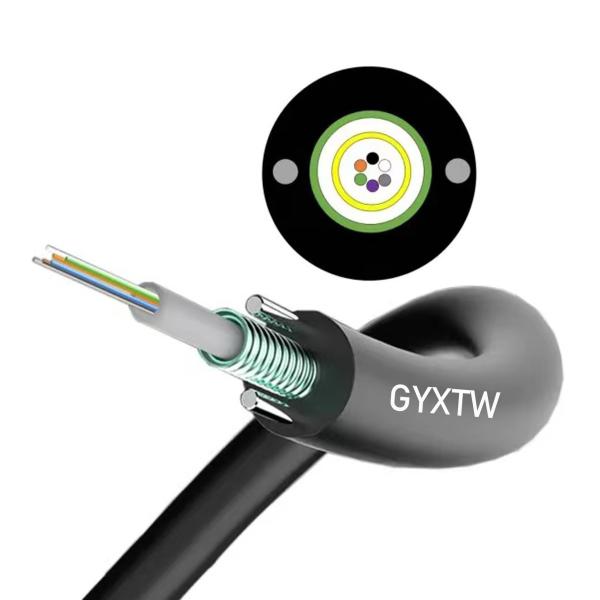

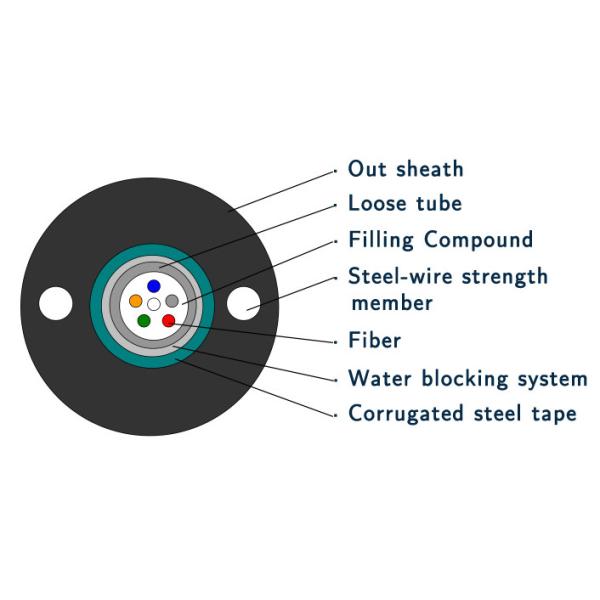

● The central loose tube protects the primary coated optical fiber

● The optical fiber is concentrated in the center of the cable, and the strength members are distributed on both sides of the cable sheath
4 6 8 12 24 Core GYXTW Steel Tape Armored Outdoor Optical Fiber Cable

Characteristics:
■ Small diameter, light weight, flexible structure.

■ Metal reinforcement, oil paste filling, steel tape armouring, loose nesting layer.

■ Single tube gel filled structure provides excellent fiber protection.

■ Two parallel steel wires ensure tensile strength.

■ Excellent mechanical and high temperature resistance.

■ Excellent water and moisture resistance.

■ Excellent resistance to ultraviolet radiation

■ Suitable for various construction environments, and has good environmental performance.

Specification:

No. of cable GYXTW-12B1.3
Fiber Model G.652D
Strength Member Material Steel wires
Diameter(±0.05)mm 1MM
Loose Tube Material PBT
Diameter(±0.06)mm 1.85
Thickness(±0.03)mm 0.35
The Max.Core NO./Tube 12 or 24
Outer Sheath Material PE
Cable Diameter(±0.2)mm 8MM
Cable Weight(±5)kg/km 78
Min. bending radius Without Tension 10.0×Cable-φ
Under Maximum Tension 20.0×Cable-φ
Temperature range Installation -20~+60
(℃) Transport&Storage -40~+70
Operation -40~+70
