Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size
Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size
Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size
Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size
Specifications
Brand Name :
Penta Laser
Model Number :
BOLT 3015
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
Name :
BOLT CNC Fiber Laser Cutting Machine
Power :
6000W
Laser Source :
Originally imported
Cutting Head :
Originally imported
Cooling :
Water
System :
Z32 CNC System
Description

Metal Laser Cutting Machine 25mm Mild Steel Travel 3000 mm ×1500 mm


PENTA LASER Bolt Series has Stable Mainframe, the base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,suction system,dross cleaner, enclosure and so on. It's Penta's high end series for customers that demands extremely high performance and efficiency.

Features

- IPG or Trudisk laser source from 1kw to 12kw at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

Technical Specification

Model BOLT 3015
Rate output power 6000 W
Rapid Speed 200 m/min
Maximum Acceleration 4.0 G
Accuracy ±0.03 mm/m
Mechanical Repeatability ±0.01 mm/m
Maximum cutting thickness of mild steel 25 mm
Maximum cutting thickness of stainless steel 20 mm
Working Table 3000 mm ×1500 mm

Advantages

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

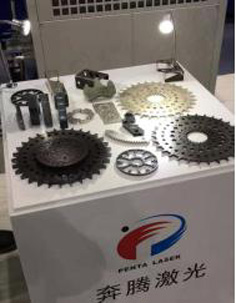

Samples

Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm SizeMetal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size
