CNC Aluminum Alloy Metal Cutter Fiber Laser Cutting Machine

Pallet exchange at the same time PENTA LASER Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency with Unique design innovation such as high speed movement and quick startup and shutdown, structure design is more compac and saves more sapce,working table is lower and easier fr loading and unloading process.

Features

- IPG or Trudisk laser source from 1kw to 12kw at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

Technical Specification

Advantages

Stable Mainframe

Efficient Control System

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Imported nesting software function

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Pre-perforation System

Accomplish the pre-perforation as settled

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Application

Suitable for thick sheet cutting and widely used in the fields of aerospace high-speed locomotive, shipbuilding and oil drilling equipment etc. Leading beam compensation technology meets the demand of large-format sheet cutting.

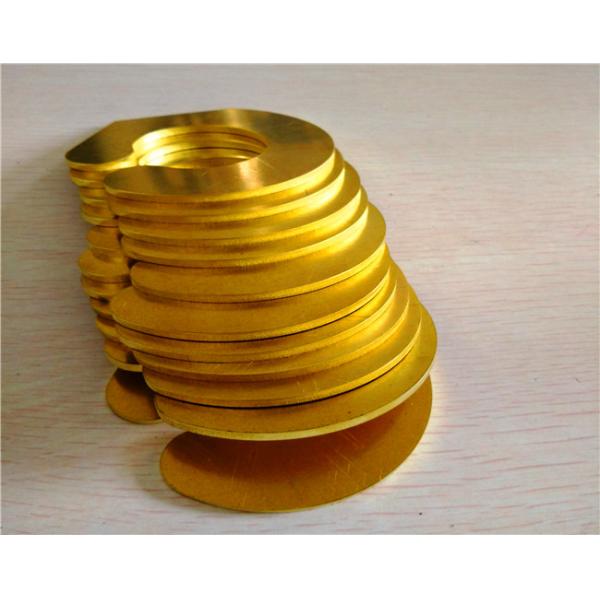

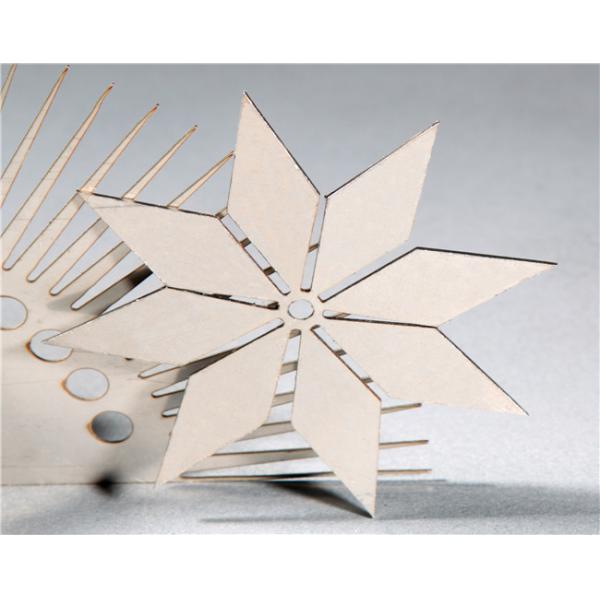

Sample
