Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Specifications
Application :
LASER CUTTING
Applicable Material :
metal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
1500mm*3000mm
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
20mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
Cypcut
Place of Origin :
Shandong, China
Brand Name :
GONXING
Laser Source Brand :
MAX/RAYCUS/IPG
Laser Head Brand :
Raytools
Servo Motor Brand :
Yaskawa
Guiderail Brand :
HIWIN
Control System Brand :
Cypcut
Weight (KG) :
7000 KG
Key Selling Points :
High Safety Level
Warranty :
3 years
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other, Advertising Company
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC, laser source, laser head, rail, water chiller
Mode of Operation :
continuous wave
Configuration :
5-axis
Products handled :
Sheet Metal and Tube
Feature :
SERVO-MOTOR
Reducer :
SHIMPO/Motovairo
Electrical components :
Schneider made in France
Max. accelerated speed :
1.5G
Working area :
1500*3000mm/1500*6000mm/2000*4000mm (customizable)
X/Y axis Position Precision :
±0.03mm
Repeat Accuracy :
±0.02mm
Rotary diameter :
160mm / 220mm / 320mm optional
Oiling system :
Automatic oiling system
Drive system :
Servo drivers and motors
Max. Running Speed :
120m/min
Price :
$26,000.00/sets 1-4 sets
MOQ :
1 set
Payment Terms :
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Description
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
model
GX-6012T
GX-6017T
GX-6024T
GX-6029T
GX-6035T
working area
1500*3000mm
1500*4000mm
1500*6000mm
2000*4000mm
2000*6000mm
X/Y axis positioning accuracy
±0.03mm
X/Y axis repositioning accuracy
±0.01 mm
maximum movement speed
120 m/min
maximum acceleration
1.5G
Laser Power
1.5-6kw
1.5-6kw
1.5-6kw
1.5-6kw
1.5-6kw
Laser Source
MAX/RAYCUS/IPG(optional)
1.5G
1.5G
1.5G
laser cutting head
OSPRI/ PRECITEC/ RAYTOOLS (optional)
servo motor
Fuji/Delta/INOVANCE/Yaskawa (optional)
systems & software
CYPCUT
Reducer
Shimpo
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

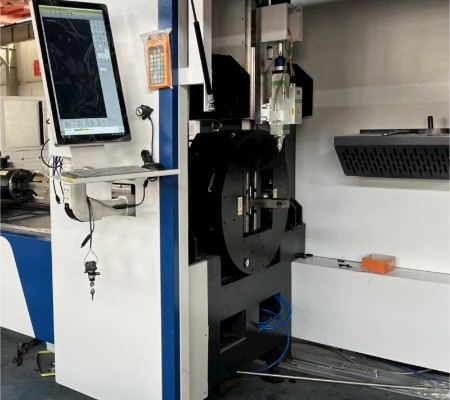

Auto focus laser head specail cutting tube
recitec or Raytools auto-focus laser head,World brand and quality.
The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different thicknesses.
It is more friendly to those with 0 experience, and the operation is simple, convenient, fast and accurate.



High quality Servo motor and Driver
With their high efficiency and high power factor, Fuji Electric's Medium-voltage inverters contribute significantly to cost
reduction and energy conservation.
Our inverter products are applicable in a wide range of fields from plants to general industry and feature superior ease of
maintenance.
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

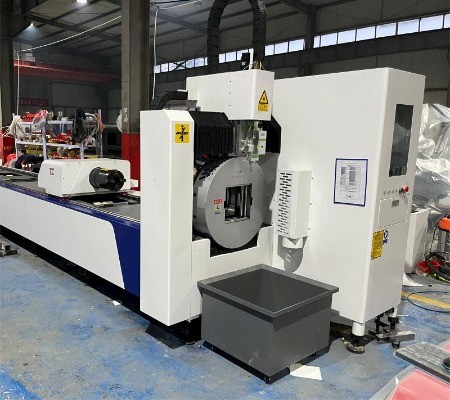

High quality fully pneumatic chuck
Full-stroke pneumatic chuck with a built-in cylinder, which is easy to install. The clamping and loosening actions are realized by air intake from the side. It can clamp a full range of applicable pipe fittings and has a full stroke to improve production efficiency.
The four-claw guide uses a guide rail mechanism to drive, making the four-claws more linear and stable, achieving a self-centering effect. There is no need to additionally adjust the position of the four-claws, which greatly reduces the labor cost of machine adjustment and improves production efficiency. Uploading... rate.

Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

Aviation Aluminum Beam

The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

Accuracy measurement

Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .

Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

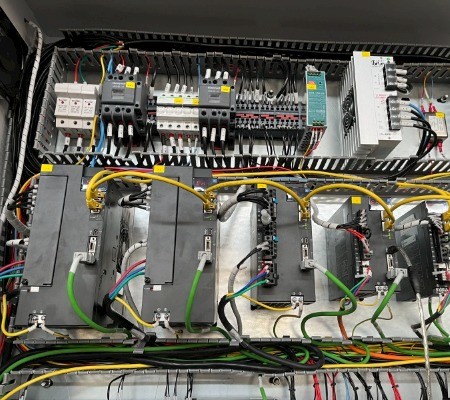

Detailed control

Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

Testing made before shipment.

each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

High quality accessories guaranteed

with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France

Quality control

Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Stainless Steel Cutting Machine GONXING Metal Sheet Fiber Laser 2000W 3000W 6000W with Raytools Laser Head Made in France
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
