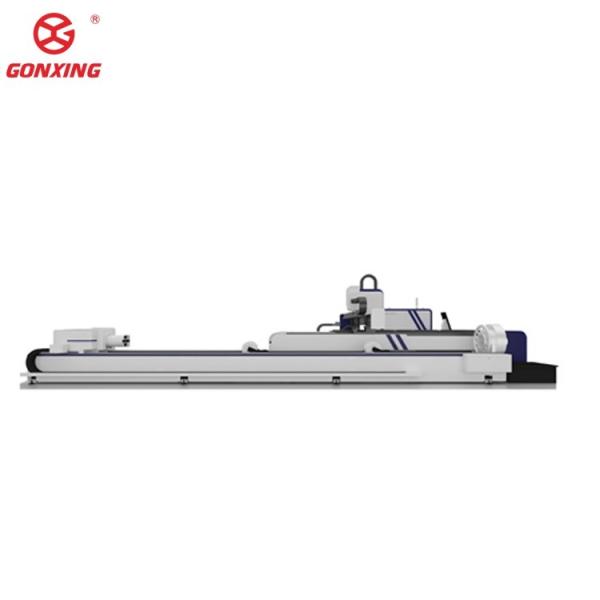

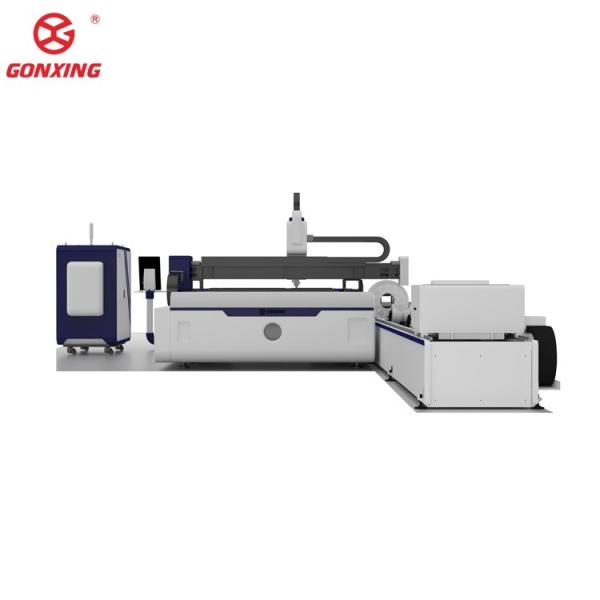

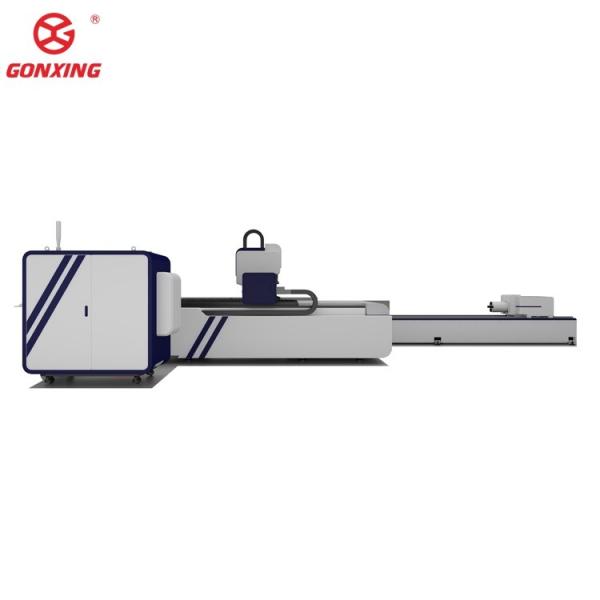

4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
Specifications
Place of Origin :
Shandong, China
Brand Name :
GONXING
Price :
$28,800.00/sets 1-2 sets
Application :
LASER CUTTING
Applicable Material :
acrylic, glass, Leather, MDF, metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
1500mm*3000mm
Cutting Speed :
1.5G
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
15mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
CYPCUT/RAYTOOLS
Laser Source Brand :
MAX/RAYCUS
Laser Head Brand :
OSPRI/ PRECITEC/ RAYTOOL
Servo Motor Brand :
Fuji/Delta/INOVANCE/Yasukawa
Guiderail Brand :
HIWIN
Control System Brand :
CYPCUT/RAYTOOLS
Weight (KG) :
5000 KG
Key Selling Points :
High-accuracy
Warranty :
3 years
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Mode of Operation :
continuous wave
Configuration :
4-axis
Products handled :
Sheet Metal and Tube
Feature :
Programmable
IPC :
High stability industry PC
Gear rack :
YYC-Taiwan
Bearings :
NSK-Japan
Pressure reducing valve :
SMC-Japan
N2 Control valve :
SMC-Japan
O2 Control valve :
SMC-Japan
Electrical components :
Schneider Electric-France
Circuit breaker :
Schneider Electric-France
Relay :
Schneider Electric-France
MOQ :
1 set
Payment Terms :
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Description
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
model
GX-3015HT
GX-4015HT
GX-6015HT
GX-4020HT
GX-6020HT
working area
1500*3000mm
1500*4000mm
1500*6000mm
2000*4000mm
2000*6000mm
X/Y axis positioning accuracy
±0.03mm
X/Y axis repositioning accuracy
±0.02 mm
maximum movement speed
150 m/min
maximum acceleration
1.5G
Laser Power
1.5-6kw
1.5-6kw
1.5-6kw
1.5-6kw
1.5-6kw
Laser Source
MAX/RAYCUS/IPG(optional)
1.5G
1.5G
1.5G
laser cutting head
OSPRI/ PRECITEC/ RAYTOOLS (optional)
servo motor
Fuji/Delta/INOVANCE/Yaskawa (optional)
Control systems and software
CYPCUT
Reducer
Shimpo
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

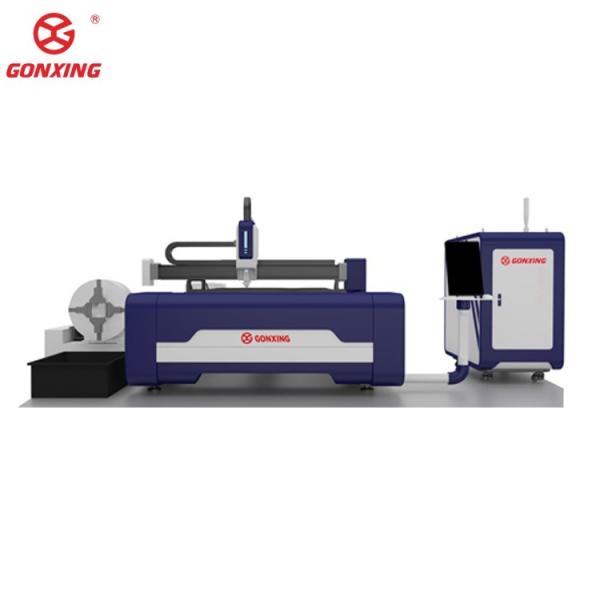

All-in-one Design Concept
One-piece design, complete and simple structure, small size, to meet the rising shipping cost, so that the total cost of the
machine is lower.
Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Heavy Duty Machine Bed
The structure of the bed is welded with high-strength steel pipes, and there are reinforcing ribs in the pipes to increase the
strength and toughness of the bed.The whole bed is subjected to 3 welding processes to make the welding seam firmer. The stress
relief heat treatment is carried out at 800 ℃ within 24 hours after welding. After taking it out, it is naturally cooled for many
days to relieve stress and make the bed more durable and not deformed.
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
Raytools Auto focus laser head
The software automatically adjusts the focal length to complete rapid perforation and cutting of sheets of different
thicknesses.It is more friendly to those with zero experience, and the operation is simple, convenient, fast and accurate.
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

Aviation Aluminum Beam

The beam is made of aviation-grade extruded aluminum, which has the advantages of good toughness, light weight, corrosion
resistance, oxidation resistance, low density, etc. It also has excellent dynamic performance, which is conducive to high-speed
cutting.
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

Accuracy measurement

Original 35mm Taiwan YYC rack, Hiwin guide rail.Greater carrying capacity to the thickness of the metal to be cut.and with Automatic lubrication system it can help the users more convenient and save more time .
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

Detailed control

Whole machine delivery, no installation is required, and it is ready to use when plugged in.
Industrial computer, good cooling
effect, dustproof.
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

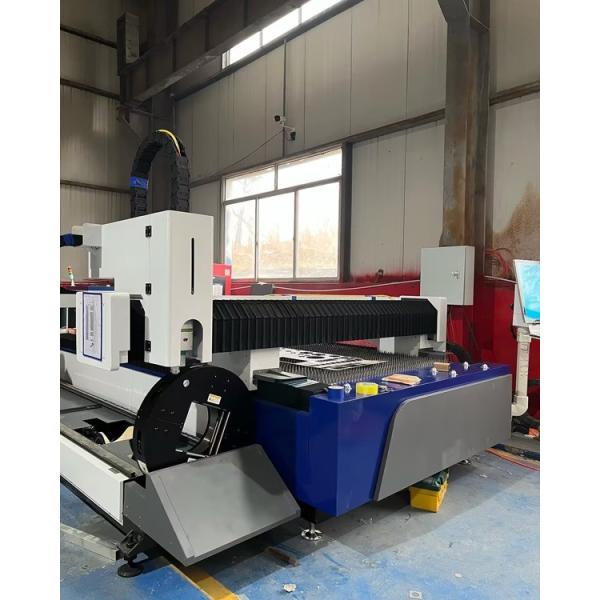

Testing made before shipment.

each customers machine all be tested and runing more than 24h in our factory and testing kind of materails and thickness and save the parameters for all of the customers .
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

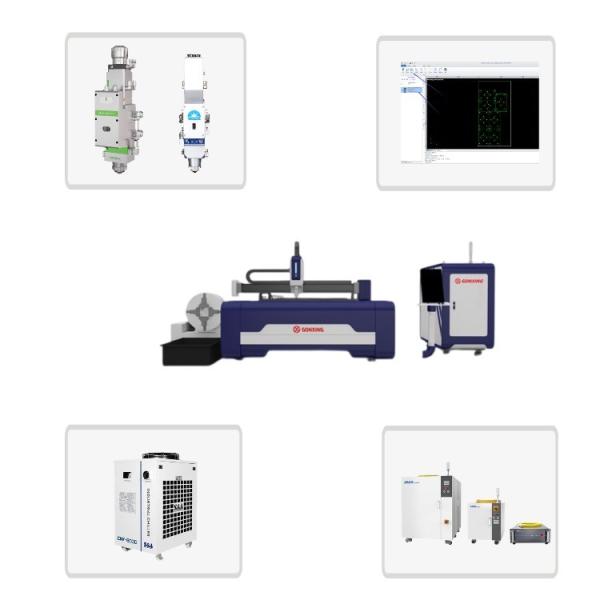

High quality accessories guaranteed

with top brand Raycus Auto focus laser head. it is more convenient for without any using experience customers to make adjustments .and long using life
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum

Quality control

Ensure the accuracy of cutting parameters and ensure high-quality cutting samples.it will be more stable for customer working
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
4-Axis Fiber Laser Tube Cutting Machine 1000W 1500W 3000W 6000W 12000W for Metal Aluminum
Q: What is a fiber laser cutting machine? A: Fiber laser is a special type of solid laser. Typically, fiber lasers are optically pumped, which is accomplished by coupling the radiation from a diode maser or other fiber laser into the cladding or core itself in a direction parallel to the fiber core. In many cases, to achieve higher output power, double-clad fiber is used. What materials can fiber laser cut? Various metals such as stainless steel, carbon steel, mild steel, galvanized steel, aluminum,Copper etc. Q: Do you have CE documents and other customs declaration documents? A: Yes, we have the original. First, we will show you and give you CE/packing list/commercial Invoice/sales contract for customs clearance. Q: Payment terms? A: Alibaba Trade Assurance/TT/Western Union/Payple/LC/Cash, etc. Q: I don’t know how to use it after receiving it, or I encounter problems during use. What should I do? A: We can provide cam for team viewer/Whatsapp/email/phone/Skype until you solve all the problems. Q: What is your MOQ? A: We have no MOQ. Whether it is an order for 1 set or 100 sets, we will support you wholeheartedly. Q: How does your factory do in terms of quality control? A: Quality is priority. Each OREE laser machine will undergo 24 tests. After all 24 items are passed, our QC will conduct a 48 to 72 hours reliability test. Our laser machine has obtained CE.
