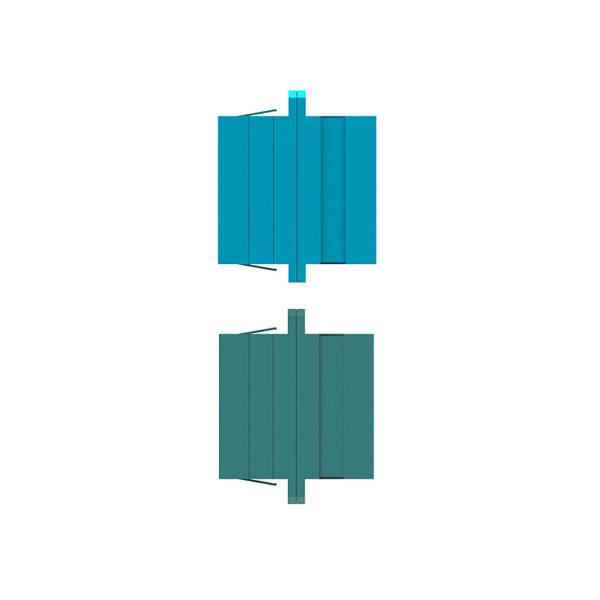

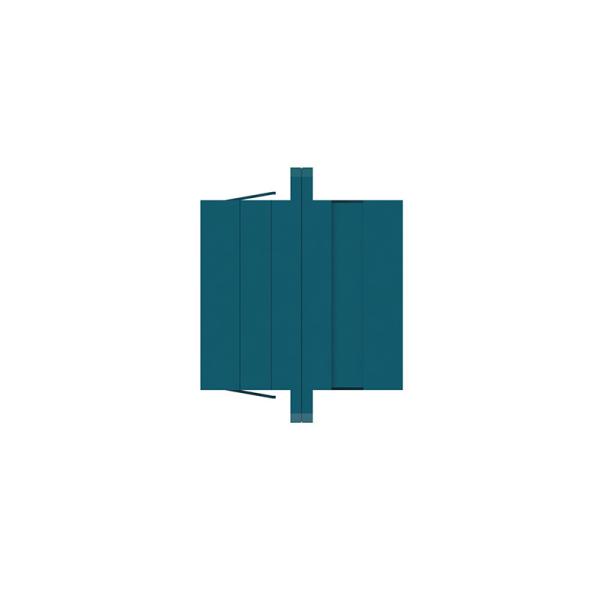

SC Fiber Optic Adaptor Low Insertion And Return Loss LC Quad Coupler With Flange
SC Fiber Optic Adaptor Low Insertion And Return Loss LC Quad Coupler With Flange
SC Fiber Optic Adaptor Low Insertion And Return Loss LC Quad Coupler With Flange
SC Fiber Optic Adaptor Low Insertion And Return Loss LC Quad Coupler With Flange
Specifications
Brand Name :
HACEN
Certification :
RoHs ,ISO9001,ISO14001,ISO45001
Place of Origin :
CHINA
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Depends on the cavities and toolings
Delivery Time :
7-14 working days
Packaging Details :
CARTON
Sample :
welcome ask sample for testing
Tensile Strength :
≥ 30N（2.0x3.0 drop .）
Reflection Attenuation :
PC>= 45 dB, UPC>= 50 dB, APC>= 65 dB
Allowed Tensile Strength :
100N<1000N
Storage Temperature :
-40 ~ 85℃
Product :
Multimode LC Quad Coupler With Flange
Mode :
Single-mode or Multi-mode
Transmission Medium :
Sm, mm
Description

SC Fiber optic adaptors in Low Insertion And Return Loss with flange

Fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.

Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)

- Low insertion and return loss and back reflection

- High Precision Alignment

- Good Wearability

- Good interchangeability

Applications

- Local Area Networks (LANs)

- Data processing networks

- Test equipment

Environmental & Mechanical Data

Operating Temperature -40 to +75º C
Storage Temperature: -40 to +85º C
Temperature Cycling (61300-2-18) -40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18) 70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19) 40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1) 10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2) 500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material Plastic
Adapter Color Black,Blue,Green,Aqua,

FAQ

1. What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2. Whats the MOQ?

MOQ is flexible based on the products type.

3. Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4. Do you support customization?

Yes ,customization is available according to your product requirements.

5. Can I get a sample first?

Yes ,Warmly welcome

6. Can I add my own logo?

Yes.OEM and ODM are available .
