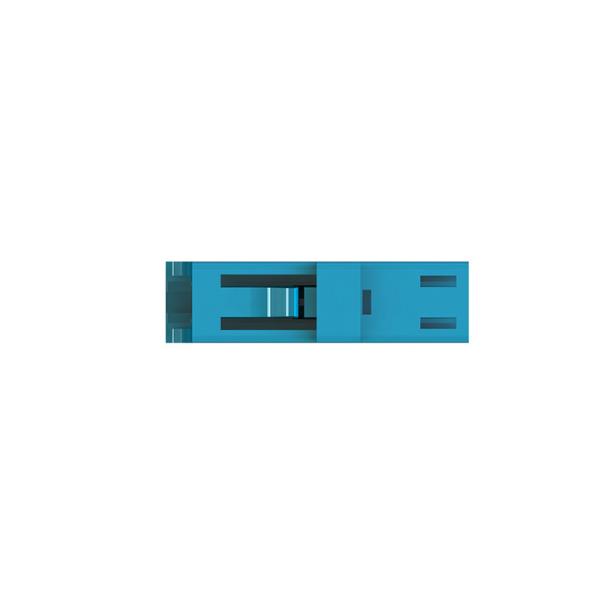

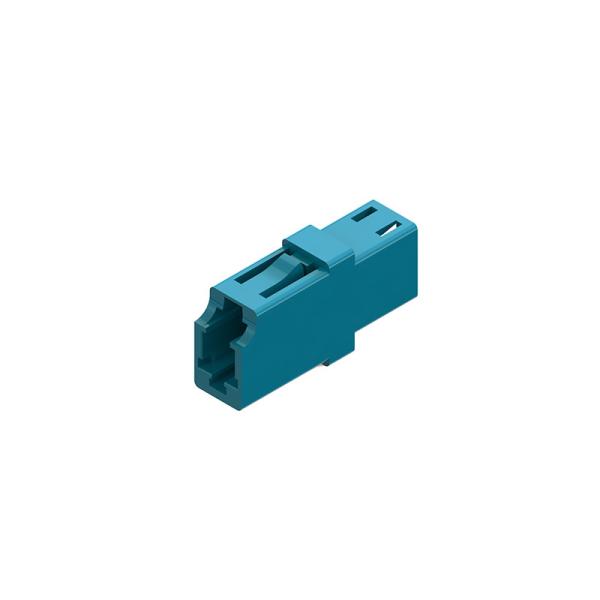

IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV
Specifications
Brand Name :
HACEN
Certification :
RoHs ,ISO9001,ISO14001,ISO45001
Place of Origin :
CHINA
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Depends on the cavities and toolings
Delivery Time :
7-14 working days
Packaging Details :
CARTON
Origin :
China
Adapter Type :
LC Simplex
Features :
high size precision
Operation Temperature :
-40 ~+75 degree
Standard :
IEC, Reach
Ferrule End Face :
PC,UPC
Insert Loss :
≤0.2dB
Fiber :
250um Bare Fiber
Description

LC Fiber Optic Adapter Connectivity In Telecommunication Networks And CATV


Fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber connectivity
- Available in singlemode and multimode, including APC and various colours

- Good Temperature characteristic

- Good repeatability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Wide Area Networks (WANs)

- Test equipment

Environmental & Mechanical Data

Operating Temperature -40 to +75º C
Storage Temperature: -40 to +85º C
Temperature Cycling (61300-2-18) -40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18) 70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19) 40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1) 10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2) 500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material Plastic
Adapter Color Black,Blue,Green,Aqua,

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
