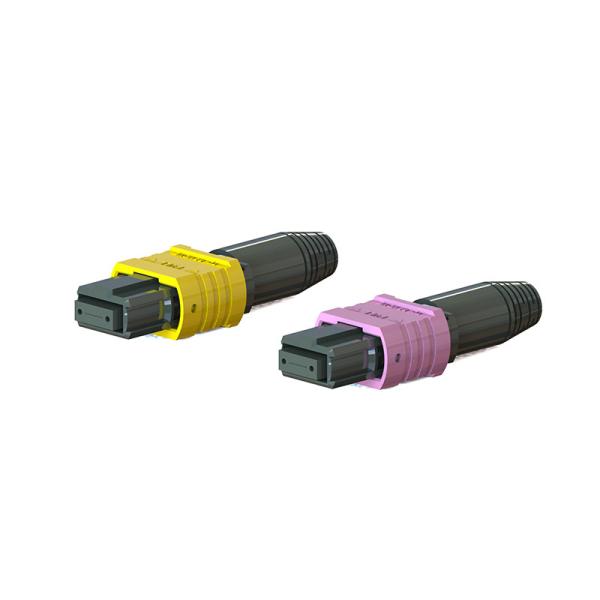

High Density MPO Fiber Optic Connector For Fiber Transmission Network Mini 43mm
High Density MPO Fiber Optic Connector For Fiber Transmission Network Mini 43mm
High Density MPO Fiber Optic Connector For Fiber Transmission Network Mini 43mm
High Density MPO Fiber Optic Connector For Fiber Transmission Network Mini 43mm
Specifications
Brand Name :
HACEN
Model Number :
MPO
Certification :
RoHs ,ISO9001,ISO14001,ISO45001
Place of Origin :
SHENZHEN,CHINA
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
T/T, , Western Union
Supply Ability :
Depends on the cavities and toolings
Delivery Time :
7-14days
Packaging Details :
Carton
Connector Type :
MPO/MTP
Insertion Loss :
<0.35dB
Connector Color :
Aqua/Green/Yellow
Return Loss :
>60dB
Operating Temperature :
-40°C to +85°C
Type :
Round/Ribbon
Connector Gender :
Male/Female
Description

High-Density MPO Fiber Optic Connector For Fiber Transmission Network Mini 43mm

MPO connectors are a popular choice for high-density fiber optic connections in modern data centers and network environments.

Availablity
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

- Housing kits with /without ferrule are available

Features

- Low insertion loss and high return loss

- Excellent interchangeability and repeatability

- High Precision Alignment


Applications

- Data transmission network

- CATV, LAN & Access Network

- High-speed telecommunications networks

- Fiber-to-the-home (FTTH) deployments

- Parallel optical transmission in high-performance computing environments

Advantages

- Hig density (4/8/12/16/24 fibers per ferrule)

- Cost efficientcy

- Reduce downtime (MPO connectors enable quick reconfiguration and easier troubleshooting)

- Flexibility (MPO connectors can be used in a variety of configurations)

Fiber Type SM MM
Insertion Loss < 0.5 dB < 0.7 dB
Return Loss APC> 50 Db, PC> 40Db /
Life Time > 500 cycles
Working Temperature -40°C to + 70°C
Storage Temperature -40℃ to + 85℃
Fiber Polish APC / PC / UPC
Connector Type Male / Female
Boot Choices Standard / Short / Long
Compliance IEC 61754-7, RoHs 2.0
Ferrule Cores 4, 8, 12, 16, 24, 32, 48

FAQ

1. What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2. Whats the MOQ?

MOQ is flexible based on the products type.

3. Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4. Do you support customization?

Yes ,customization is available according to your product requirements.

5. Can I get a sample first?

Yes ,Warmly welcome
