Duplex Zipcord Fiber optic Cable
Duplex Zipcord Fiber optic Cable
Specifications
Place of Origin :
Ningbo
Payment Terms :
TT/LC/Western Union
Description

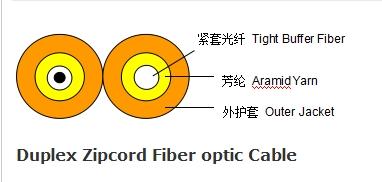

1.Characteristic

.900μm or 600μm tight buffer fiber, aramid yarn,

.flame-retardant jacket

.Excellent stripping performance of tight buffer fiber

.Suited to SM fiber and MM fiber (50μm and 62.5μm)

2.Geometrical Characteristics

Duplex Cable Type

φ3.0

φ2.0

φ1.8

φ1.6

Duplex Cable Diameter(mm)

2.85/5.80

1.95/4.00

1.80/3.70

1.75/3.60

Duplex Cable Weight(kg/km)

14

8

7.8

7.6

TBF Diameter(μm)

900±50

600±50

3. Mechanical Characteristics

Max Load(N)

Long Term

100

100

100

50

Short Term

200

200

200

100

Bending Radius(CM)

Dynamic

20×H (H: Cable Axis)

Static

10×H (H: Cable Axis)

4.Fiber

Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125

5. Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

AVG. Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

Min Bandwidth(MHz·km)

——

400/400

160/500

6.Environmental Characteristics

Storage Operating Temperature

-20℃～+60℃
