Specifications
Model Number :
PA6+Stainless Steel Wire anchor clamp
Type :
Fiber tension clamp
Place of Origin :
NINGBO
Brand Name :
OEM
Use :
Overhead
Warranty Time :
20 years, 10 year
Network :
None
Product Name :
PA6+Stainless Steel Wire anchor clamp
Model No :
XS-B06
Product name :
Fiber tension clamp
Summary :
Pass
Test type :
Factory test reports
Product Size :
330*62*32 mm
Material :
PA6+SS201
Weight :
133 g
Breaking load :
5.5 KN
MOQ :
500 pieces
Price :
$1.50/pieces 500-99999 pieces
Description
FTTH equipment PA6+stainless steel wire tension suspension coaxial plastic anchor clamp/tension clamps Fiber Optic Anchor Clamp
Product Description


This product consists of two parts: Stainless Steel Wire and Reinforced nylon body,FTTH anchor clamp is designed to dia up to 3-9mm fo drop cable in fit the various ADSS cable designs, Anchor clamp is used on dead-end fiber optic cables.FTTH drop cable cable Fitting is easy in installation,an requies prepartion of optical cable before attaching,Open hook self-locking construction perform easiest installation on fiber pole,Anchor FTTX optical fiber clamp and drop wire cable brackers are acailable either separately or together as assembly. FTTX drop cable anchor clamps passed the tensile tests,Operation experience with temperatures ranging form-40degree up to 60 degree test. Temperature cycling test,aging test , Corrosin resistant test
VR
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension
Specification
Model
Size
Material
Apply
Cable diameter
Weight
Breaking load
Warranty Time
XS-B06
330*62*32 mm
PA6+SS201
3-9 mm
133 g
5.5 KN
10 year
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension



Features:
1.Good anti-corrosion performance. 2.Abrasion and wear resistant. 3.Maintenance-free. 4.Durable. 5.Easy installation. 6.Strong grip to prevent the cable from slipping. 7. Stainless Steel Wire has guaranteed firm tensile force






Packaging information
1: Outside the carton Size：40x30x30 CM 2: Outside the carton weight：12.2 KG 3: Each box number：80 PCS
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension

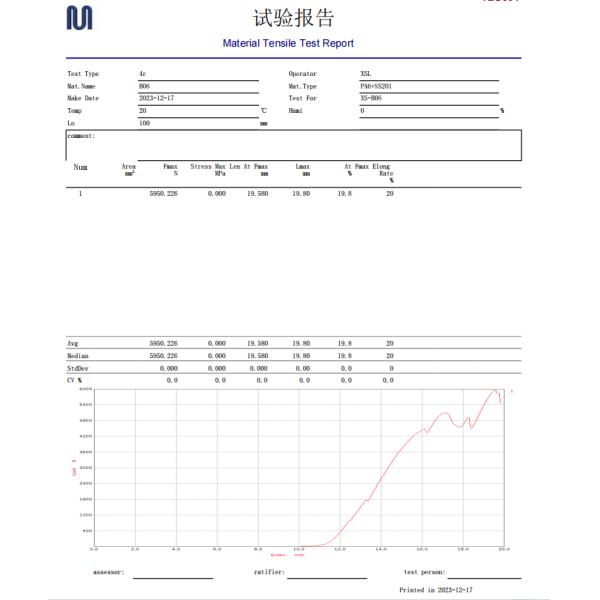

Tensile test report：
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension
330*62*32 mm Fiber Optic Anchor Clamp for PA6 Stainless Steel Wire Tension Suspension

FAQ

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box,Fiber optic tension clamp except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you
